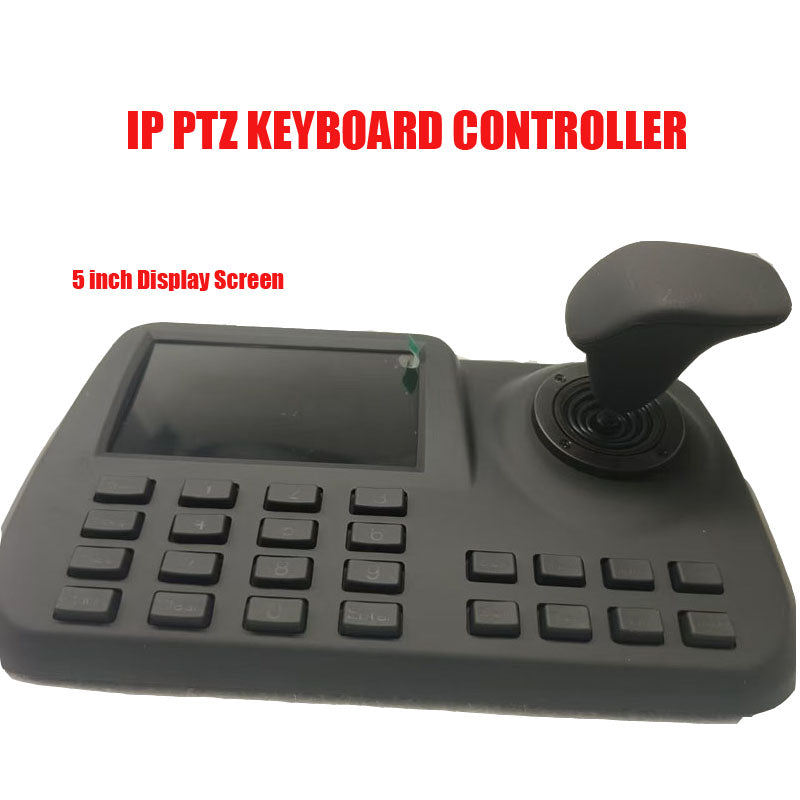

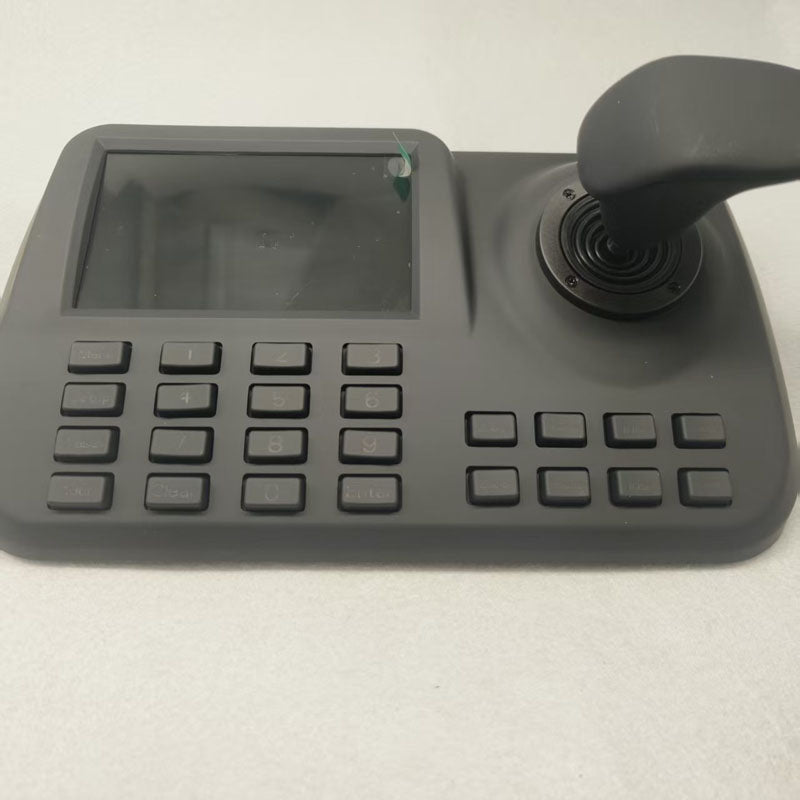

Free shipping 5inch LCD ONVIF IP PTZ 3D Joystick CCTV Keyboard Controllers for Speed Camera

Free shipping 5inch LCD ONVIF IP PTZ 3D Joystick CCTV Keyboard Controllers for Speed Camera

$175.00 USD
$175.00 USD
Sale Sold out

5 Inch LCD ONVIF IP PTZ Keyboard 3D  Joystick CCTV Keyboard Controllers for IP PTZ Speed  Camera


Note:

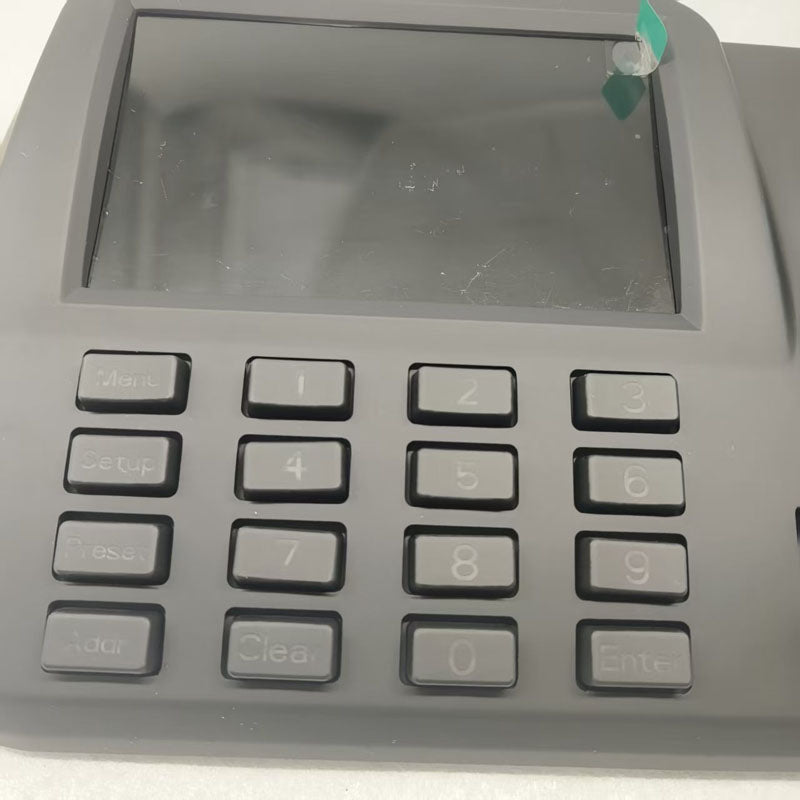

1.It uses a backlight keyboard. When there is no power, you can’t see the numbers or letters on the keyboard

2,  We only ship Black color in stock,      The  white  color is not in stock,  it need to be customized .

Features:

  • Supports Tour,360 Scan and A-B Scan and so on function ;

  • To support ONVIF2.4,not limit for back-end PTZ, easy to realize PTZ tour, A-B scan, pattern, play and plug,without any set, automatically add and allocate IP address by keyboard;

  • Standard equipped with dimensional control, 1-64 grade speed limit, precise position, control sensitively;

  • Chinese and English switch ;

  • To support USB,HDMI interface output, can be realize main screen picture any switch on control board;

  • To support 5.0”HD LED , real display image on control device;


Specifications

  • 1 x user Manu

  • Product size: 260mm*160mm*48mm

  • Operating Temperature -20C+55C

  • OSD Menu English

  • Control Camera Quantity No limited (single screen display )

  • Communication Distance depend on network cable

  • Display screen 5 inch LED

  • Joystick Vector variable speed joystick

  • Baud Rate 9600bps

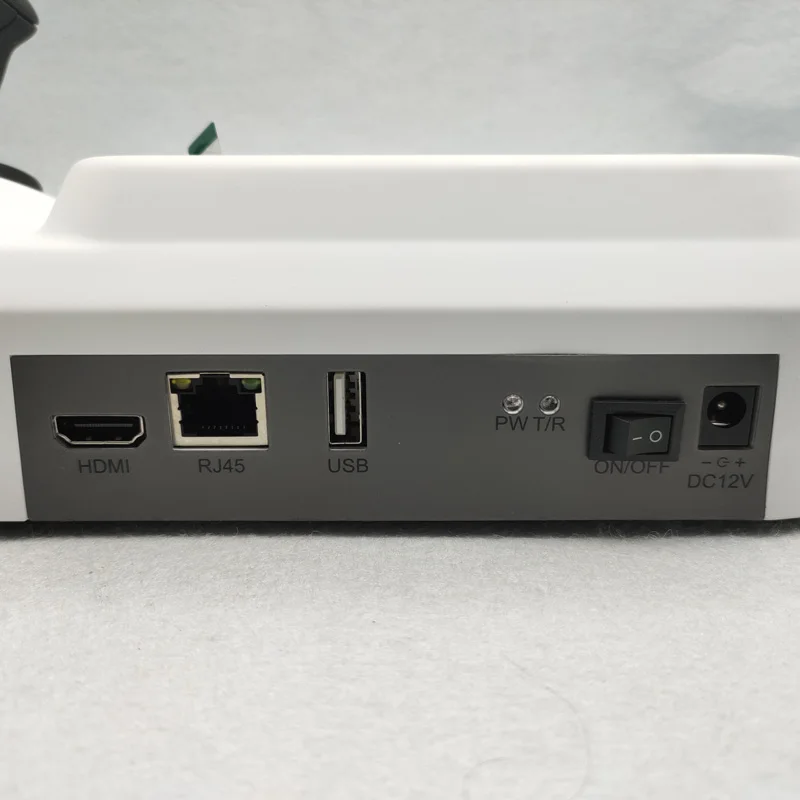

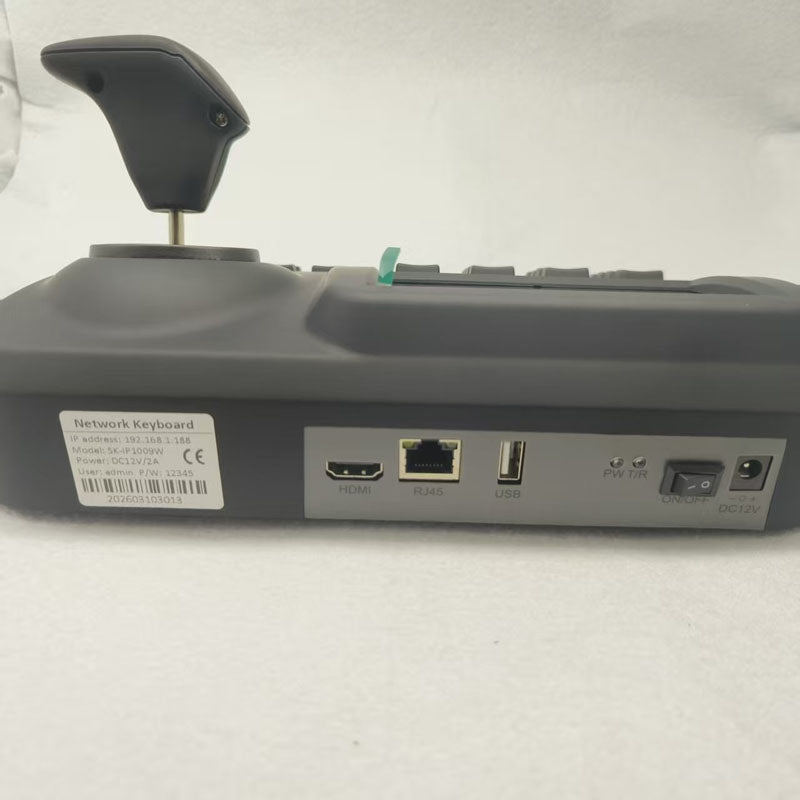

  • Interface 1xRJ45 , 2xRS485 (reserved) , 1xDC12V power , 1xHDMI , 1xUSB

  • Operating Humidity ≤90% Non Condensing

  • Power Supply DC12V/2000MA

  • Control way Network

  • ONVIF 2.4

  • Product Network Keyboard
