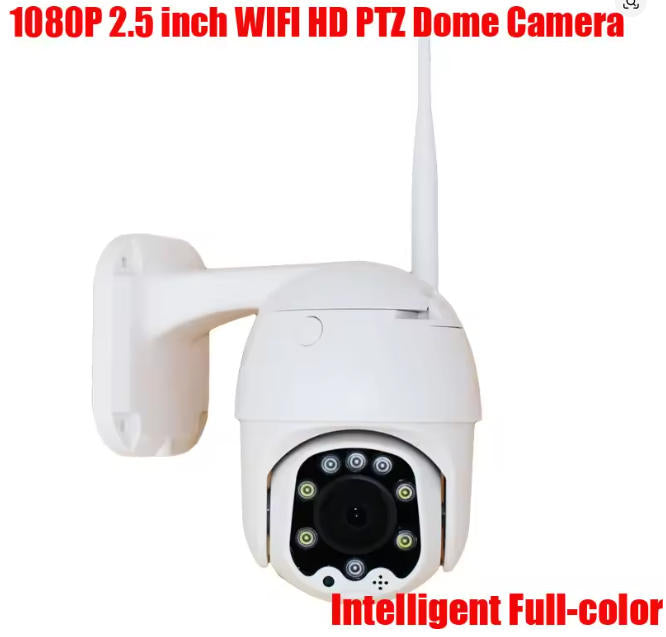

2.0MP/1080P 2.5 inch WIFI HD Intelligent Full-color wifi PTZ Dome Camera support SD Card

2.0MP/1080P 2.5 inch WIFI HD Intelligent Full-color wifi PTZ Dome Camera support SD Card

$43.45 USD
$43.45 USD
Sale Sold out
Sensor size

2.0MP/1080P 2.5 inch WIFI HD Intelligent Full-color wifi  PTZ Dome Camera support SD Card



Note:

The camera is default no including  TF Card. if you need please contact us

1. System Function

  • 2.5 inch Mini speed dome, beautiful appearance;Friendly quick install structure design,easier building.

  • Adopt high-performance sensor,H.265/H.264 compression format,resolution achieve 1920x1080.

  • Support ONVIF protocol,WIFI.

  • Support English IE interface and operation tips function, user friendly interface.

  • Protection grade: IP66.

2. Infrared function

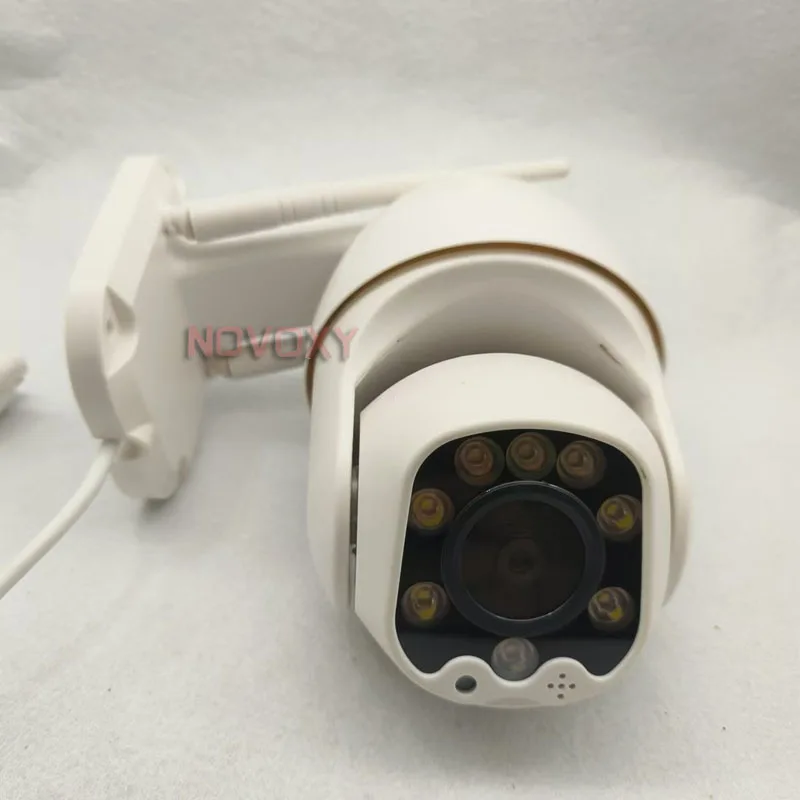

  • 8pcs Array Led(4pcs IR led+4pcs full-color led),IR Distance 50M,Night vision full-color distance 30M

  • The constant current circuit design,Infrared ages can be reach 30 thousand hours.

3.  IP Zoom camera function

  • Adopt high-performance platform, stable and reliable performance.

  • Effective pixels 2.0 million pixels (1080P),1920*1080.

  • 4mm/5x(2.7-13.5mm) optical zoom(options),support auto iris,auto focus, AWB and BLC.

  • Support digital WDR function.

  • Support  Audio function,G.726/G.711 compression;built-in high sensitivity microphone and high power horn,support voice two-way intercom/voice warning.

  • Can realize remote monitoring/two-way voice intercom/can set early warning alarm bell/can customize the voice warning content,monitoring distance of 10M, intercom distance 30M.

4. IP Network function

  • Support mobile phone/ipad /PC client /IE interface browsing /NVR video connection, truly realize full compatibility of cable and wireless, users can realize local or remote view real-time screen and control PTZ rotation/zoom

  • You can view real-time image and control PTZ rotation through IE browser,PC  Client softwar,and NVR.

  • Embedded Web Server, users can browse and control directly with Internet explorer, computer client software, NVR to view real-time screen and control PTZ rotation/doubling.

  • Support two levels of user rights management, support for authorized users and passwords, support HTTPS encryption and network access control.

  • Support H.265/H.264 compression format,dual stream output 1080P+D1

  • Built-in wireless WIFI transmission module,supports 802.11b/g/n wireless network and supports WIFI AP hotspots

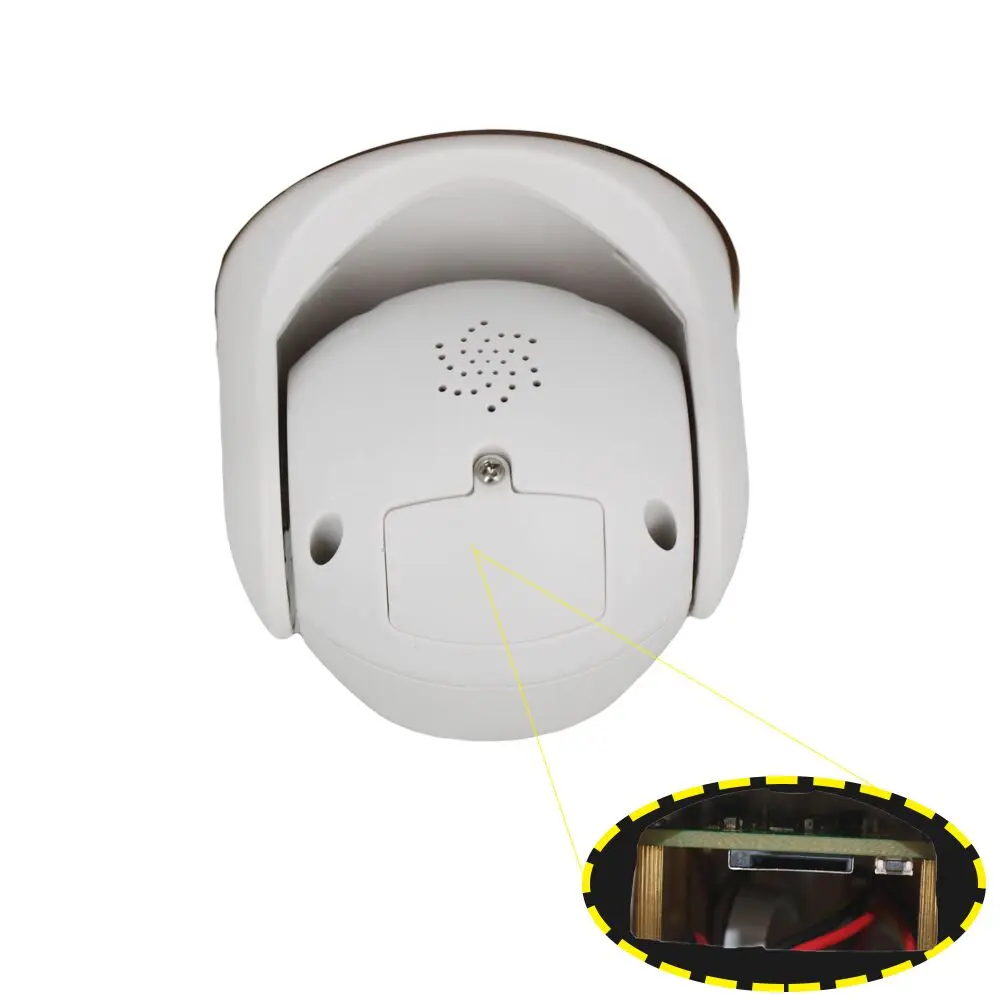

  • Support micro SD card, supporting the biggest 128G TF card

  • support mobile detection alarm, alarm push (phone and email push).

  • WEB configure, real time recording transmission and playback, Free client software supported.

  • Support multi-protocols:IPv4,HTTP,HTTPS,Qos,FTP,SMTP,UPnP,SNMP, DNS,DDNS,NTP,RTSP,RTP,TCP/IP,DHCP,PPPoE.

5. PTZ ControlFunction

  • Horizontal rotation 320°, tilt rotation 100°(-10° ~ 90°),control speed 70°/s

  • 128 presets position,2 patrol tracking routes.

Specification:

Model Number

SK-MDF2820RD

SK-MDF2820RB05

Camera

Image Sensor:

1/3" CMOS



Effective Pixels:

2.0MP pixels，1920*1080

Image Compression:

H.264

H.265/H.264

Focal Length:

4mm

5x(2.7-13.5mm) optical zoom

Min. Illumination:

Color: 0.5Lux@(F1.6, AGC ON), B/W: 0.09Lux@(F1.6, AGC ON)

Color: 0.1Lux@(F1.6, AGC ON), B/W: 0.01Lux@(F1.6, AGC ON)


0Lux with IR

White Balance:

Auto/Manual

AGC:

Auto/Manual

Focus Mode:

Auto/Manual/SemiAuto

Day & Night:

IR Cut Filter,Auto,Color,B/w

DNR

Low/Middle/High/Off



Back light Compensation:

ON/OFF

DWDR:

Support, on/off



S/N Ratio:

≧50dB

Pan/Tilt

Pan / Tilt Range:

Pan: 320° Continuous Rotation; Tilt: -10° ~ 90°

Rotationt Speed:

Rotation Speed: 0.5-70° /s

Proportional Zoom:

3.6mm

5X

Number of Preset:

128

PTZ functionl:

2 patrols,1 auto level scan

IP Network function

Net Interface

RJ45 Ethernet interface,Support 10M/100M

Dual Rate

1080P+D1

Listening distance

10M(built-in microphones)

Intercom distance

30M(built-in microphones and high power horn)

Audio(optiona)

G.726/G.711 compression

Memerycard

Support micro sd card, with maximum support of 128G

Network Protocols:

IPv4, HTTP, HTTPS, Qos, FTP, SMTP, UPnP, SNMP, DNS,DDNS, NTP, RTSP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE

WIFI

Support,802.11b/g/n WIFI

WIFI antenna

5DB,External antenna

APP

Camhi

Client

Support

ONVIF

support Onvif Protocol

Business Function

Support WEB, real-time video transmission; and motion detection

IR Function

IR Lamp

8 High power array infrared LED(4pcs IR led+4pcs full-color led)

IR Distance

50M

Full-color Distance

30M

Infrared LED Open Mode

Infrared mode, full color mode, intelligent lighting mode

Working Temperature:

-10°C~60°C

Humidity:

≤90%, Non- condensing

Waterproof grade:

IP66

Package Dimension:

226x190x133mm

Weight (approx.):

1Kg

Mount Option:

Wall mount

Power:

DC12V/2A (±10%), ≤10W

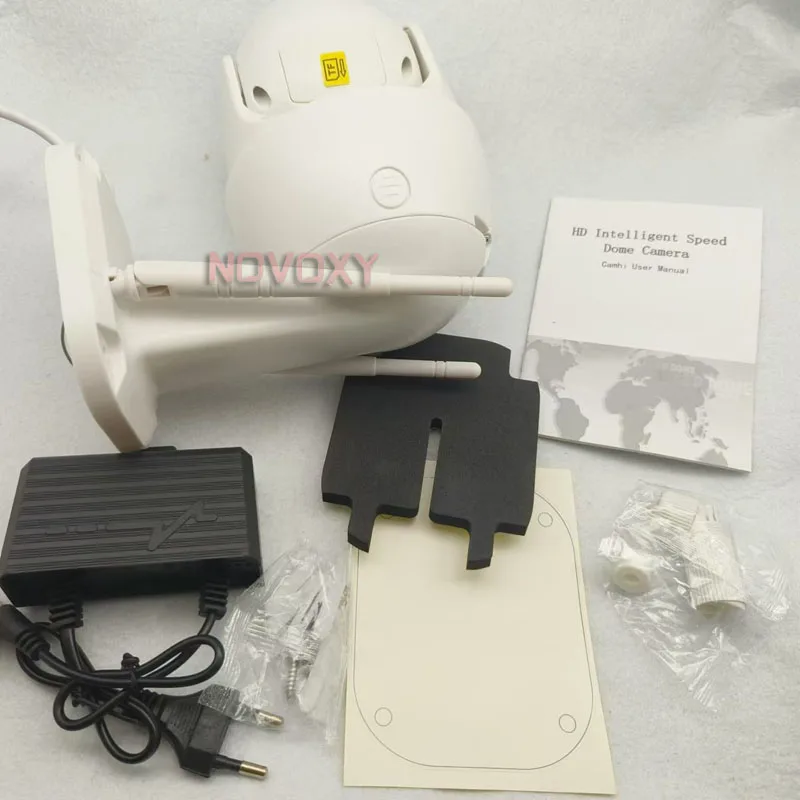

Accessories:

Installation manual ,  accessories bag
