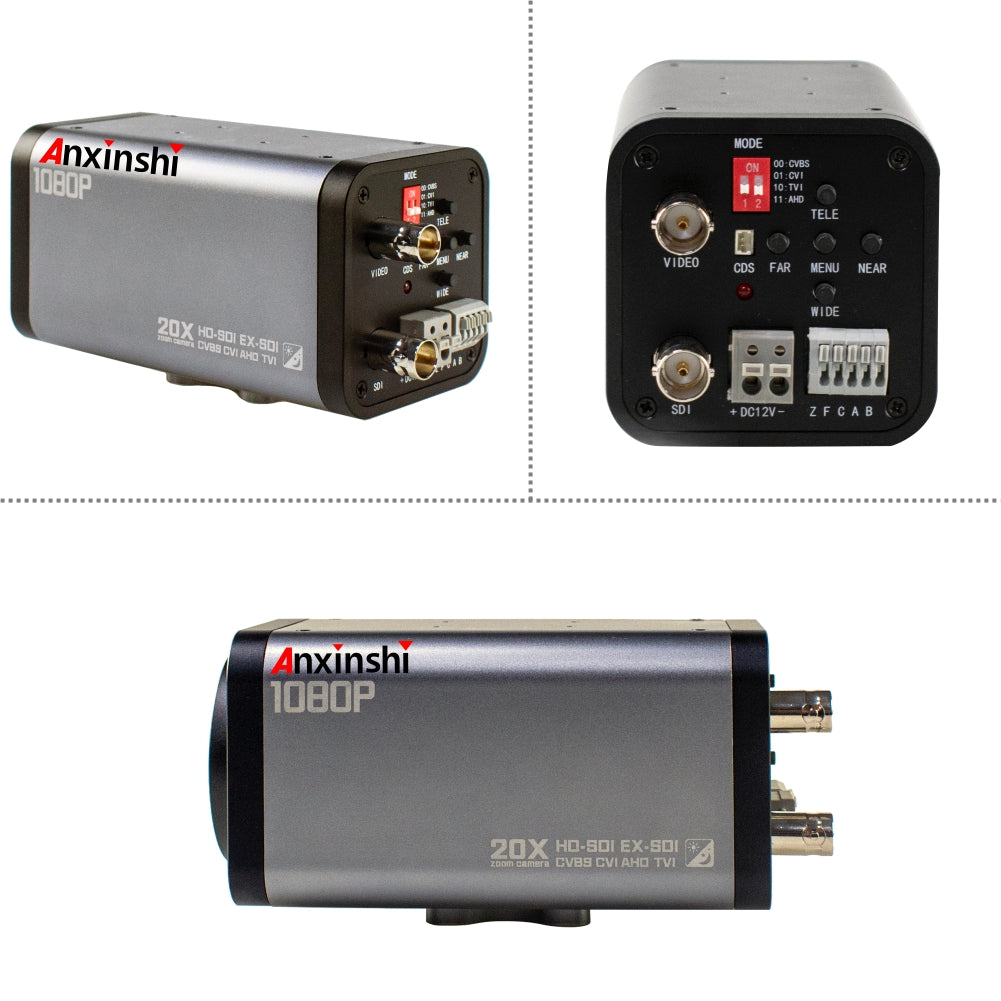

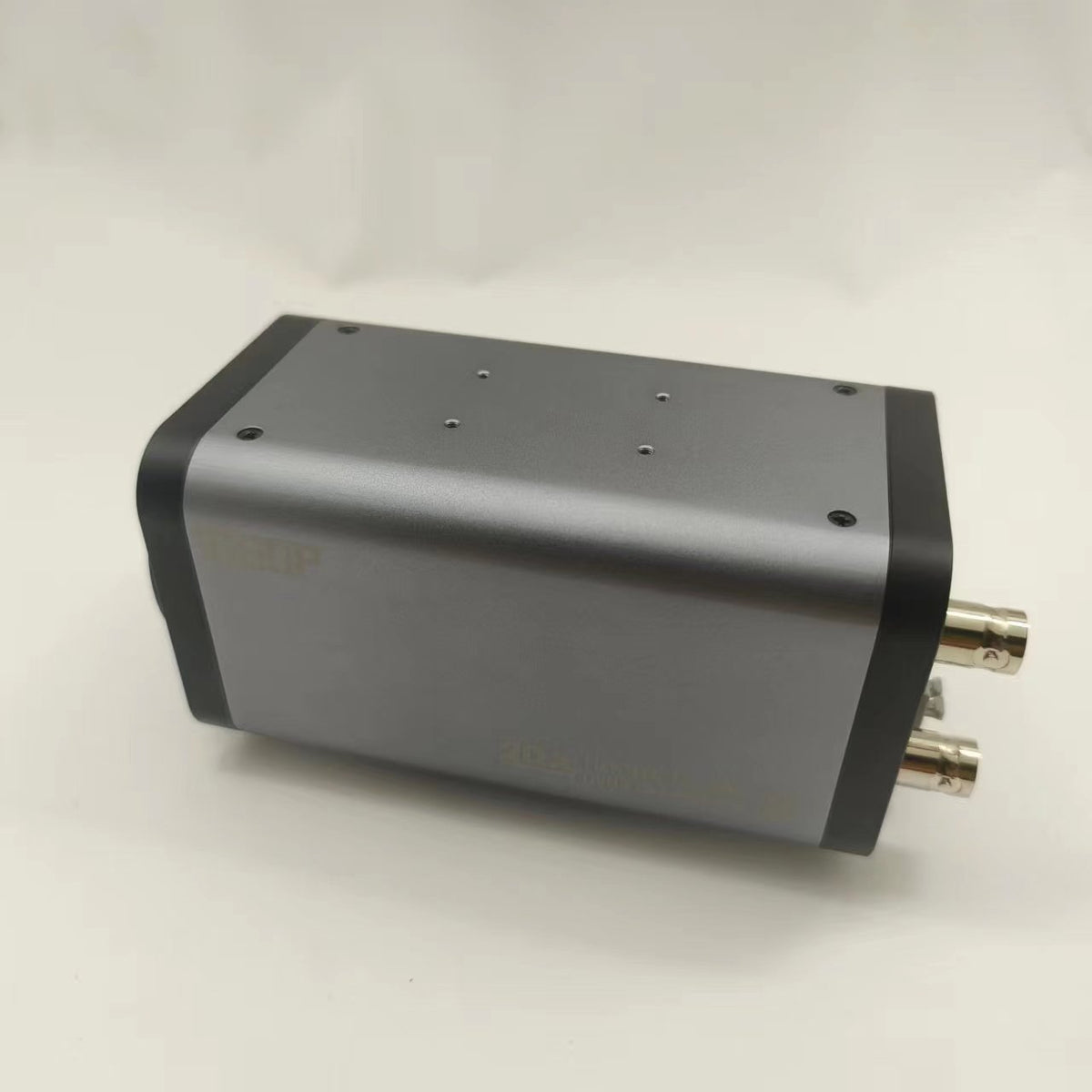

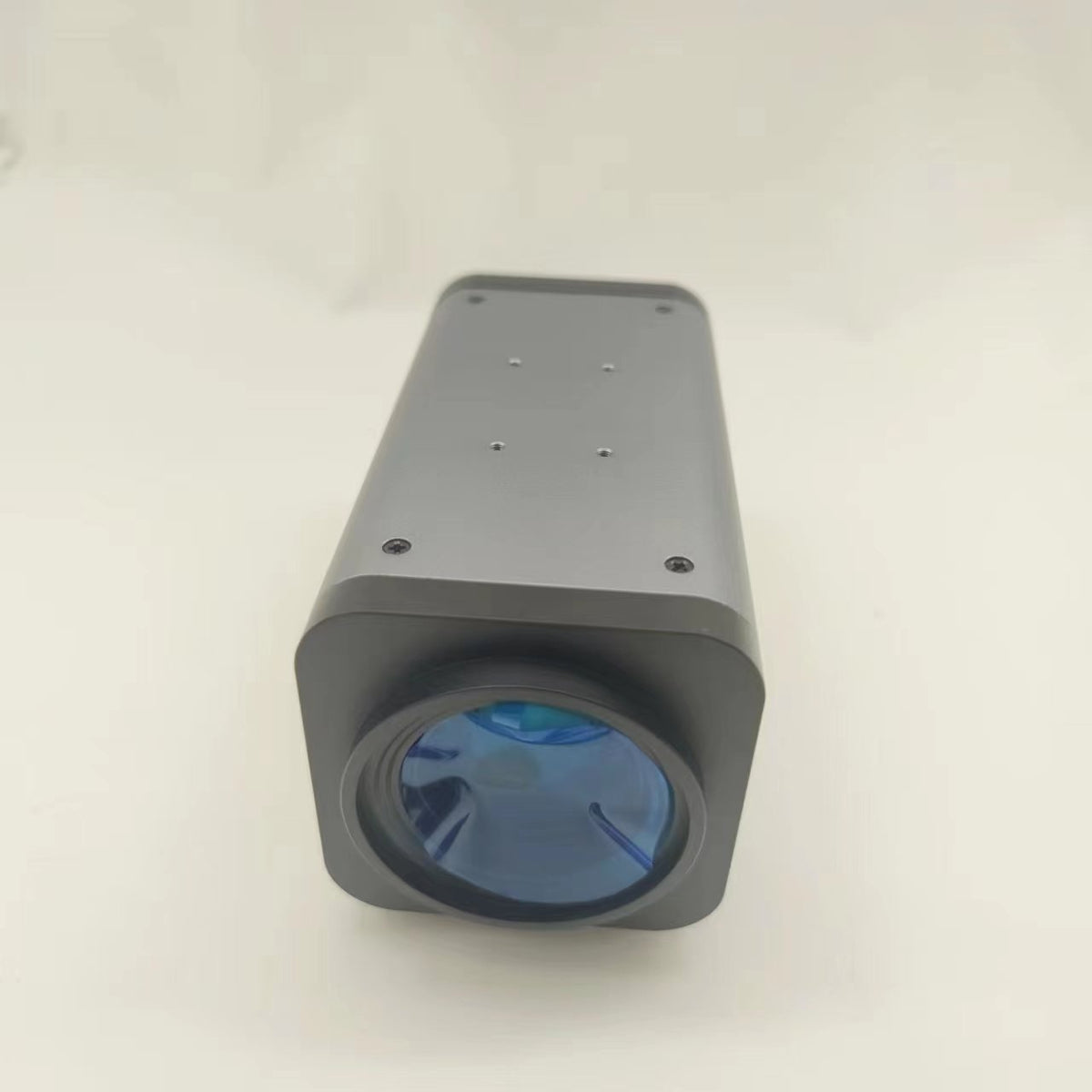

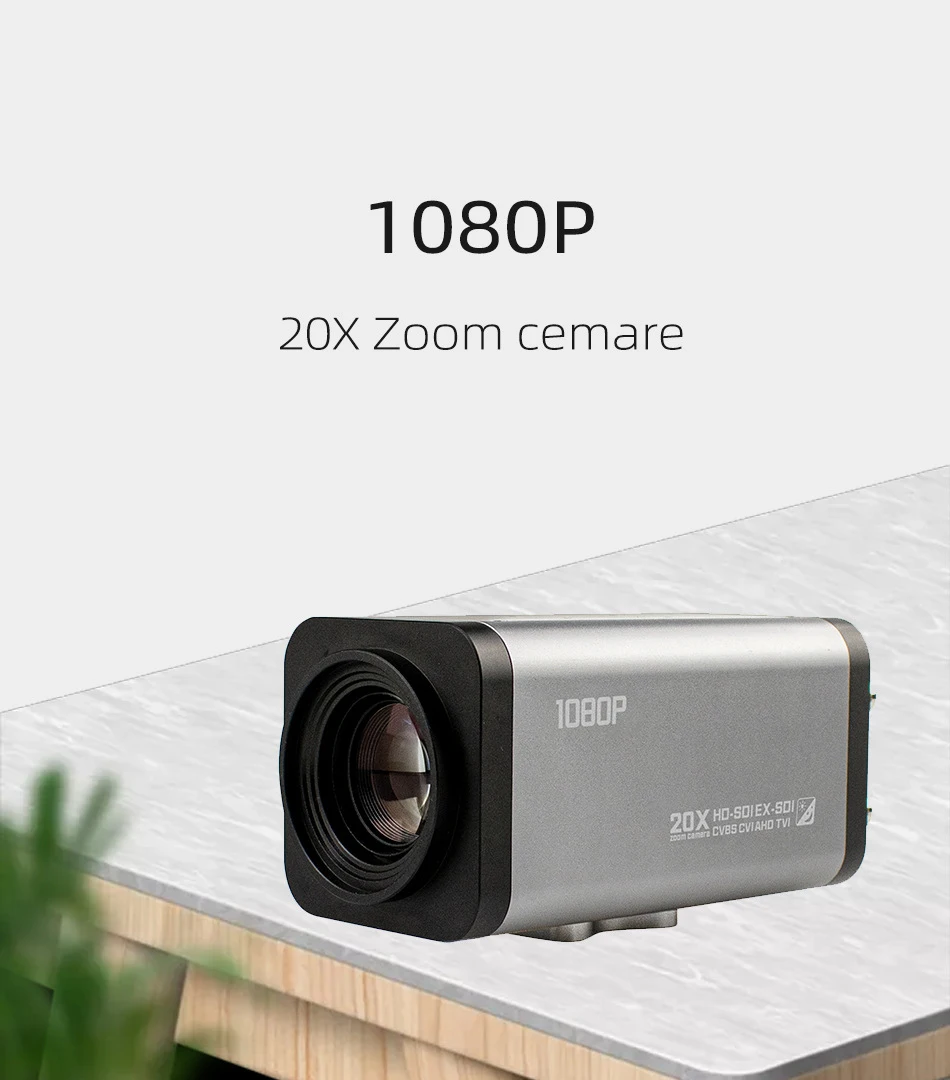

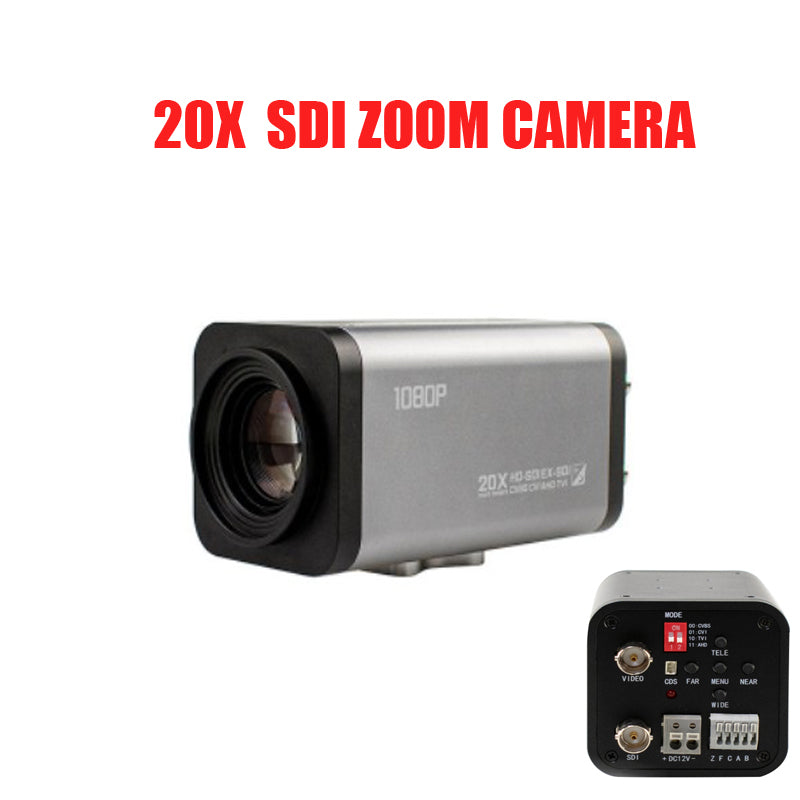

SK-SDI7500C 2.0MP 20x optica HD SDI zoom Camera IMX307 CMOS sensor 1080P EX-SDI SDI CVBS AHD TVI CVI 6 in 1 BOX SDI CAMERA with RS485

Free Shipping 2MP 1080P 6in1 EX-SDI / SDI /AHD /TVI/ CVI/ CVBS/ zoom Camera  Varifocal Lens IR CUT HLC CCTV Zoom Camera Integrated Security Camera

Note:

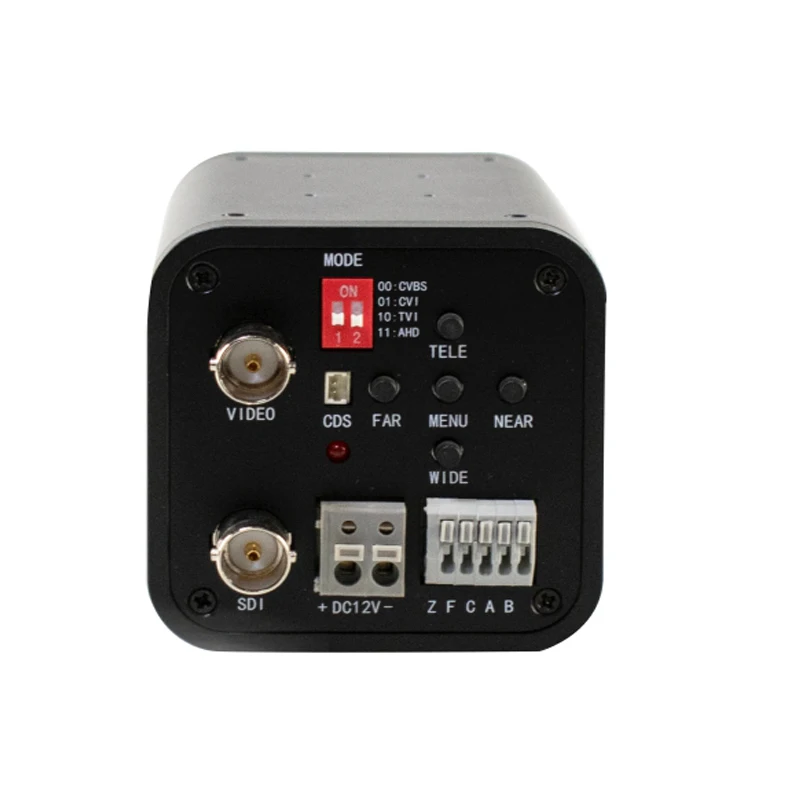

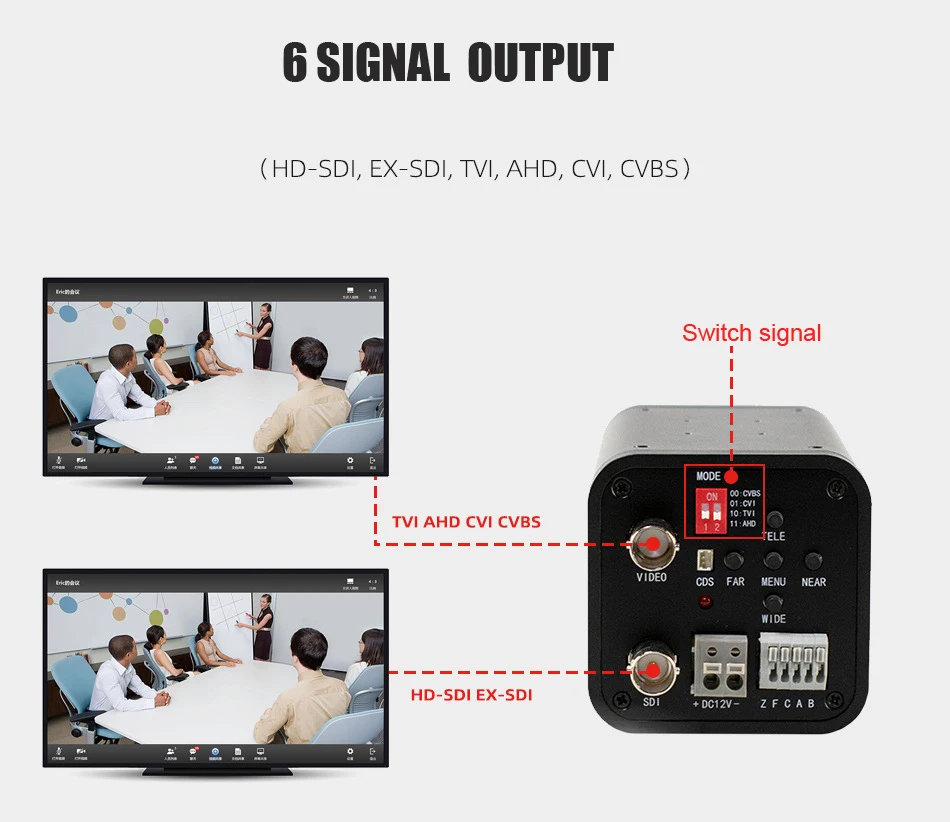

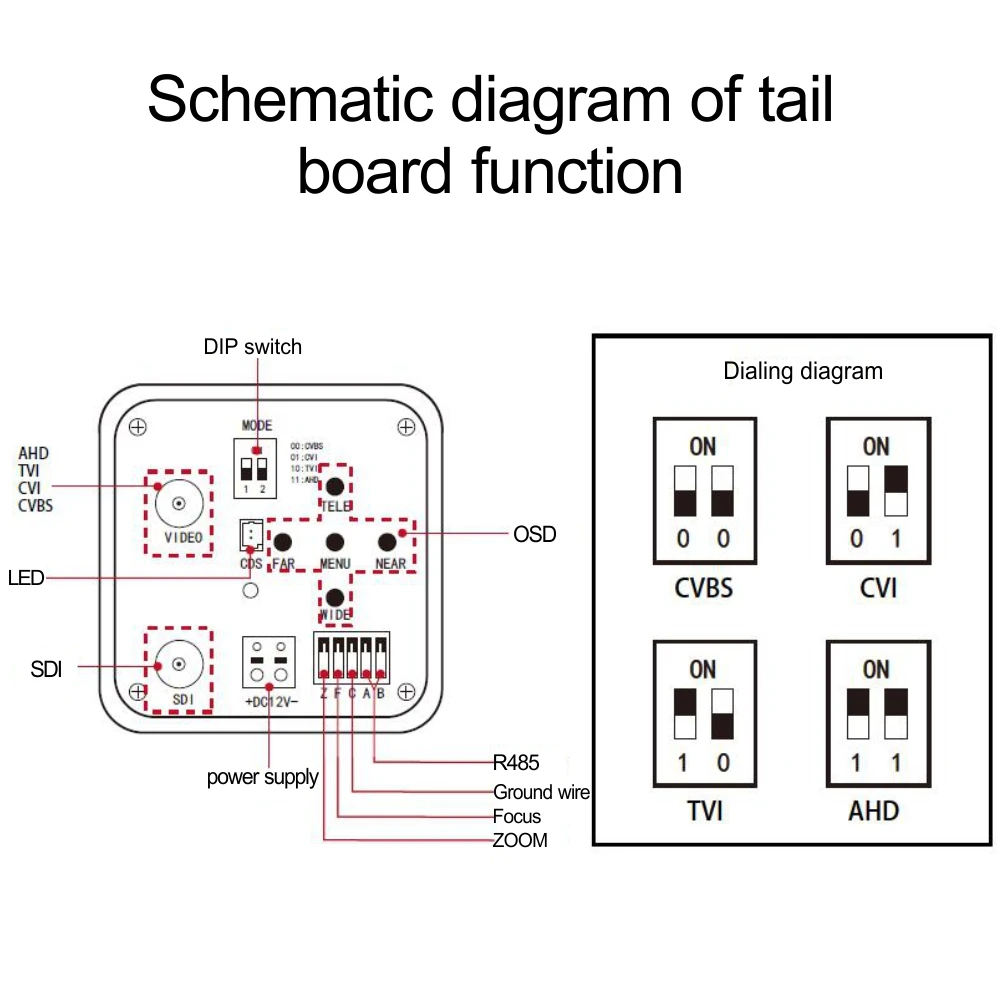

   The camera defualt CVBS signal output, You can switch the signal output at will

6 in 1 (EX-SDI / SDI / CVBS / AHD / TVI / CVI )

Model.  SK-SDI7500C

Sensor:  1/2.8" CMOS Sensor

Total Pixel（MP） :      1945 (H)x 1109 (V) = 2.16M Pixels

Effective Pixel（MP）:   1945 (H)x 1097 (V) = 2.13M Pixels

Output Format:    1080p@30/25fps, 720p@60/50fps, 720p@30/25

Minimum Illumination（LUX） Color 0.24 lux/ DSS 0.125 lux White0.001ux/ DSS 0.0025 lu

Output:      HD-SDI, EX-SDI, TVI, AHD, CVI, CVBS

Lens:     20X Optical Zoom

Focal Length:   f= 4.7mm ~ 94mm

Iris:       F1.8 (wide) ~ F3.9 (tele)

Angle of view:       Max.62.0*54.8*31.5° Min.4.1*53.59*2.03°

Exposure:     Brightness(0-20)/Sens-up(x2-x32)

Day&Night:     Auto(ICR)/Color/B&W/External

ACE OFF/Low/Middle/High

SNR（dB） ＞42dB (AGC off)

AWB Auto/Manual/Indoor/Outdoor

Backlight:     OFF/ON/HLC/BLC/WDR

Motion Detection:     OFF/ON(3 Level)

Privacy Mask:     OFF/ON(24 Level)

Language:     Chinese(simplified&traditional)/English/Japanese/Korean

3D DNR:   Auto/OFF/Low/Middle/High

Digital Slow Shutter:     OFF/x2 /x4/X8/X16/X32

Iris Control:     OFF/ON

Shutter Speed:    1/30(25) ~ 1/60,000 sec

AGC:    0-20 Selectable

Effects:  OFF/Horizontal/Vertical

Power Supply（V） DC12V+ 10%

Work Temperature（℃） -10°C~ +50°C /0% ~ 90% RH

Work Current（mA）:  Max.350mA/Normal 130mA

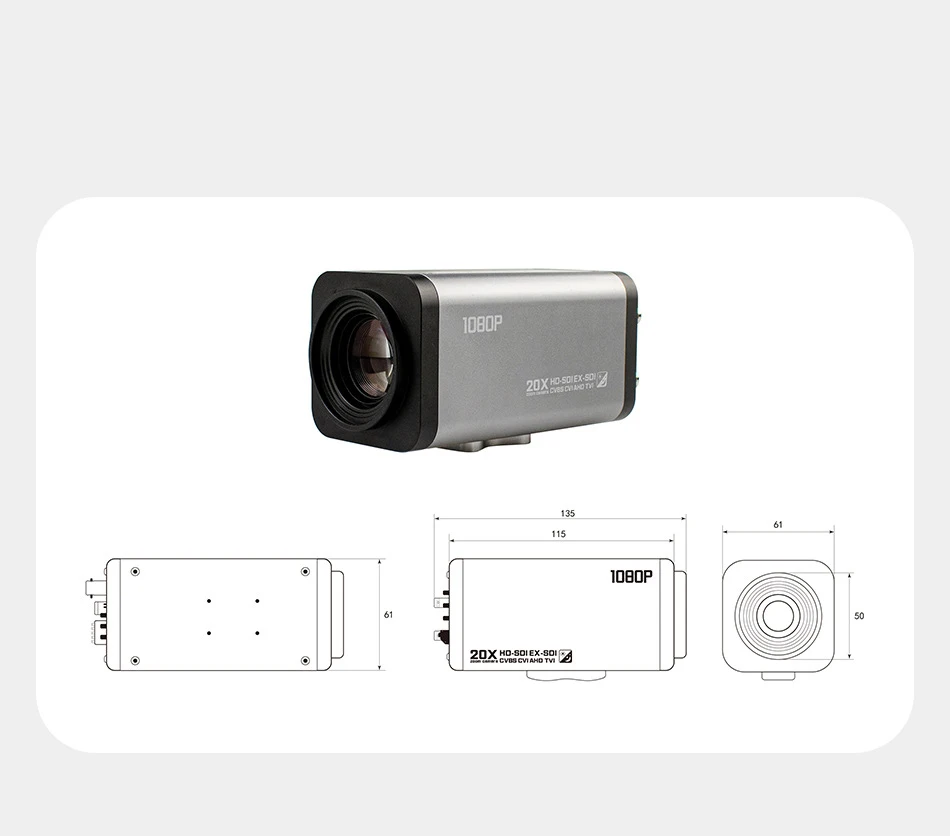

Size（mm） 61(W) x 61(H) x 115(L) mm

Weight（g） 0.42Kg
