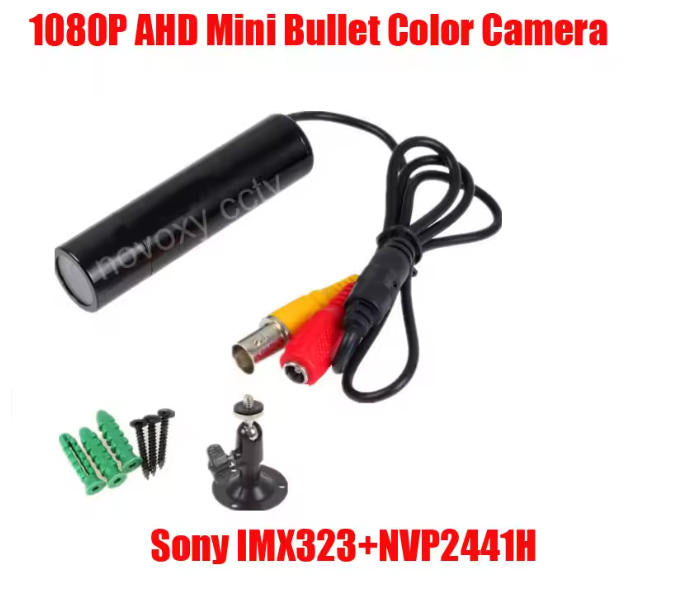

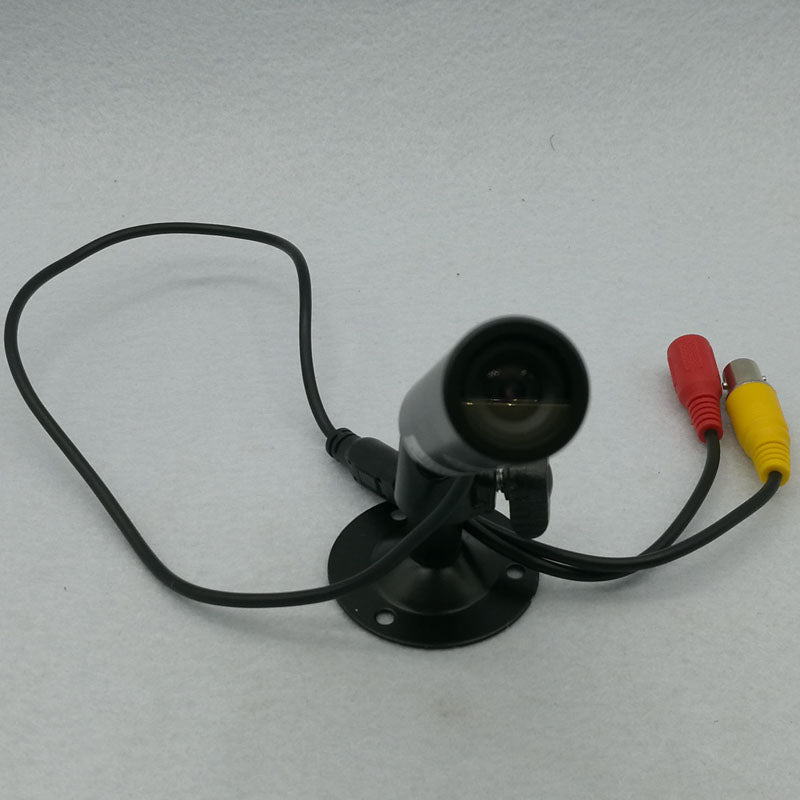

2MP 1080P AHD CVBS TVI CVI 4 IN 1 Mini Bullet Camera Vandal-proof Black Metal Bullet Security Camera

2MP 1080P AHD CVBS TVI CVI 4 IN 1 Mini Bullet Camera Vandal-proof Black Metal Bullet Security Camera

$18.90 USD
$18.90 USD
Sale Sold out
Sensor size
Signal System
Focus

2MP 1080P AHD CVBS TVI CVI 4 IN 1 Mini Bullet Camera Vandal-proof Black Metal Bullet Security Camera



Note:

1  it is AHD TVI CVI CVBS 4 IN 1 . You choose the correct signal output according to your HD DVR.  Otherwise no image will be displayed . The CVBS can direct to connect with display .   AHD TVI CVI signal can not work to direct connect with monitor or display(Except for AHD high-definition displays that can be supported)

2,The CVBS signal output can work with any DVR , If you do not know what 's DVR in you hand, you 'd better to choose CVBS signal output.


3,  You also can switch  4 kind signals via OSD menu   or Coaxial control of DVR




Specification

Model

 SK-AHD180

Image Sensor

1/3 CMOS 2MP SENSOR

Effective Pixel

PAL :  1920*1080@25fps

NTSC : 1920*1080@30fps

Signal System

PAL/NTSC

Video Standard

  AHD /TVI/CVI /CVBS Optional

Video Output

1CH AHD /TVI CTVI /CVBS Standard Singal Output(Switchable)

Max Transmission Distance

Common 75-3 Cable can be up to 500m

HD 2MP Lens size

3.6MM/6MM/8MM/12MM/16MM Optional

Minimum Illumination

0.01LUX/F1.2



3D Noise Reduction

YES

LED

NO

Lightning protection

YES

Shutter Speed

4/25s-1/45,000s

BLC

Off/Low/Medium/High/Highest

White Balance

Auto White Balance

HLC

Auto

Operation Temperature

-45°C~55°C

Power Supply

DC12V

Housing Material

Metal

IP Grade

IP65 indoor

Installation Notes:
(1) Do not use this product falls on the ground or by strong percussion;
(2) unless instructed otherwise, do not dismantle the machine;
(3) before use to determine whether the specified power supply voltage;
(4) to avoid targeting light (such as sunlight, lighting, etc.), otherwise easily lead to too bright or pull light phenomena (this is not a failure), will also affect the cmos life;
(5) Avoid wet conditions, dust, extreme heat, extreme cold, strong electromagnetic radiation and other venues;
