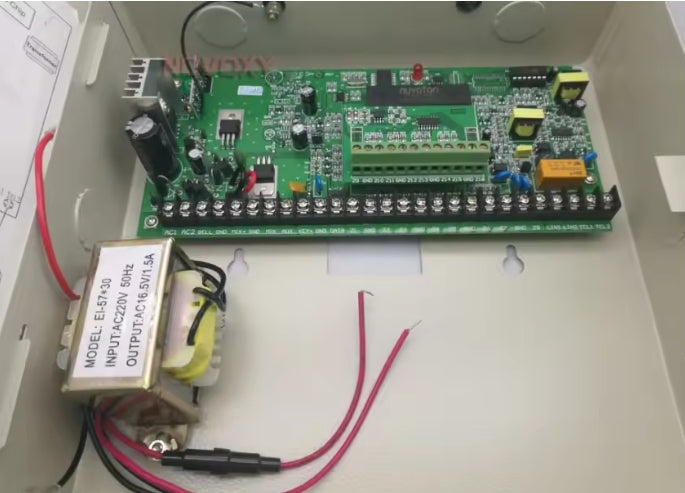

315MHZ 433MHZ 16 Zones Wired and 16 Wireless 2G 4G GMS Alarm Host Control Panel Home Security

Note1:

315MHZ AD816    and  433MHZ AD816    ( without  4G function

433MHZ AD816GMS-4G   and 315MHZ AD816GMS-4G  with 4G function

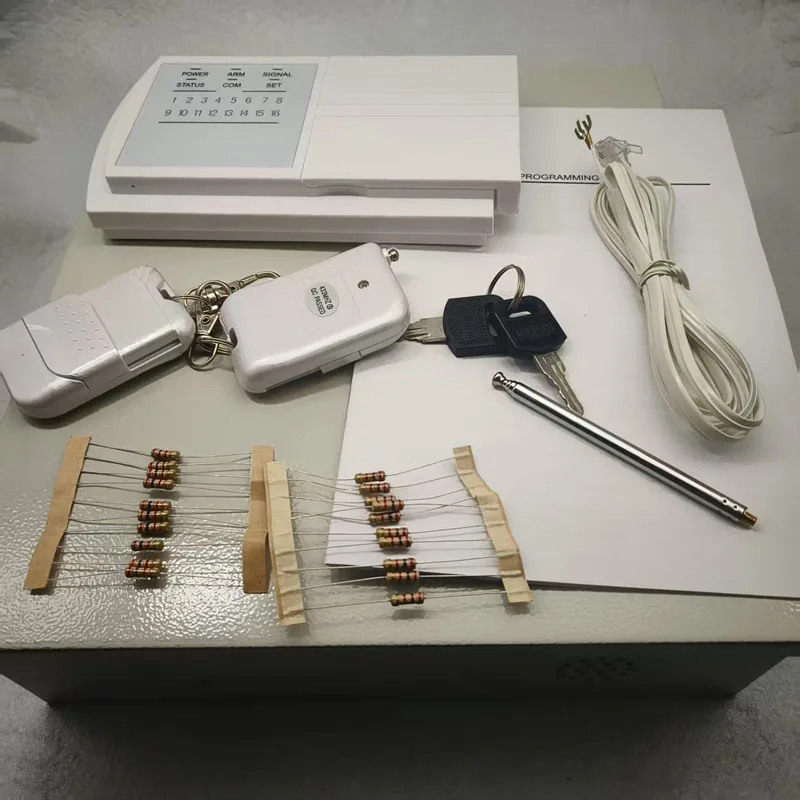

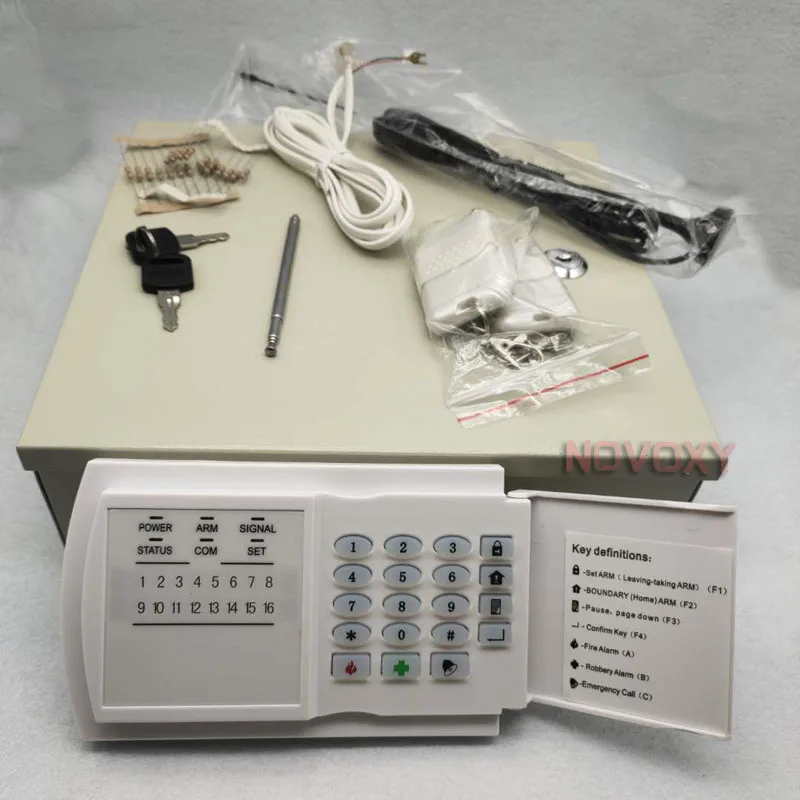

The alarm host default including one pcs keyboard.

If the buyer wants extra keyboards, you can contact us

Because there are always people who do not buy the host and only purchase the keyboard separately, which makes it impossible to use and return, we have changed the inventory to

0. Buyers who need to purchase additional keyboards please contact us.

1: When the alarm host is triggered, The telephone voice reminder supports both English and Spanish languages, but the user manual is only support in English, and the Spanish manual is not supported temporarily, Please note it.

2.Wireless frequency of the alarm host is 315MHZ and 433MHZ optional. Please make sure that the wireless frequency of your wireless detector is the same as that of the host, otherwise it will not work.

3: The alarm host is highly professional. If you are a non-professional person, Please consider carefully before buying, or let us send you the manual first, you can read the manual before deciding whether to buy, thank you

4:  The voltage default is AC220V,   AC110V is optional,    please leave message on your order if your want AC110V

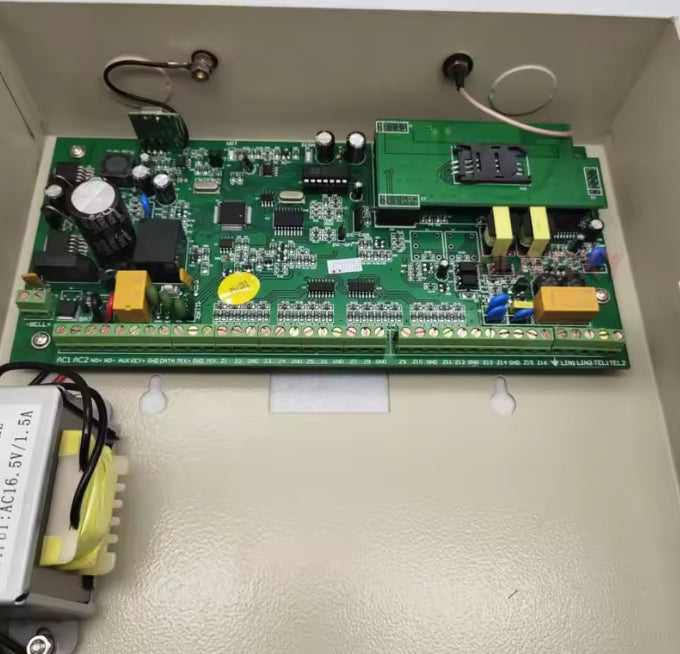

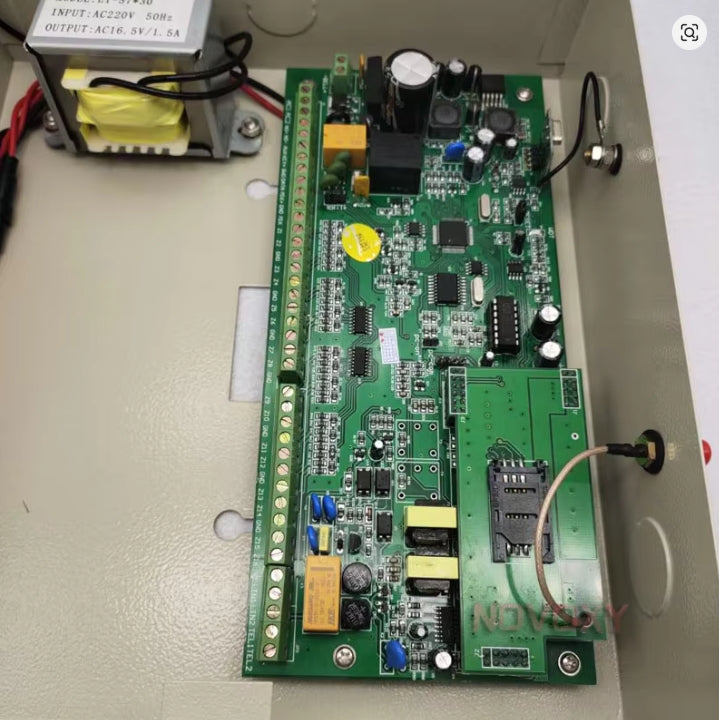

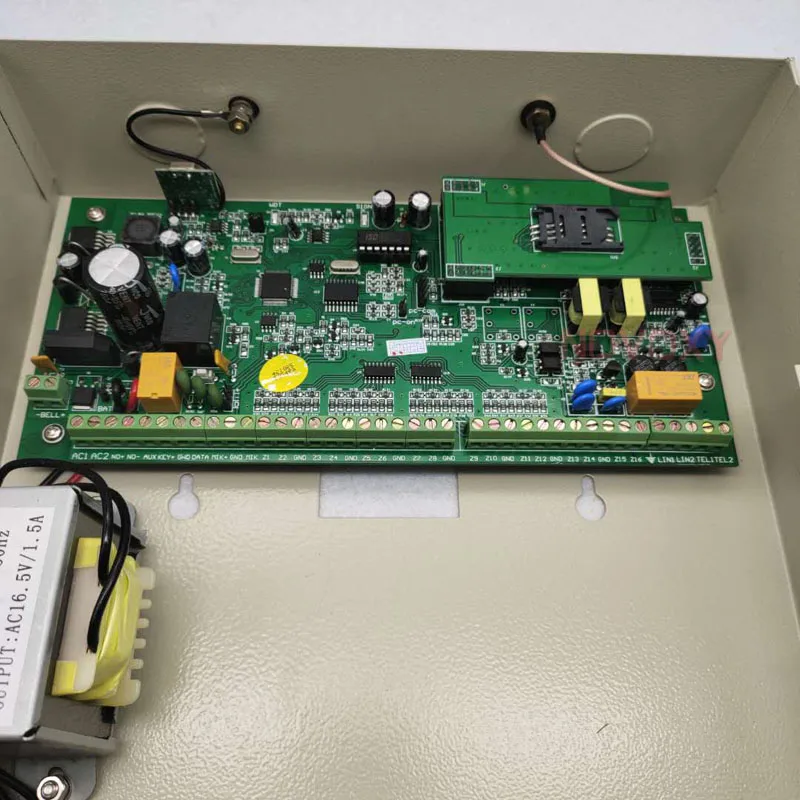

5:  The host will be upgraded from the program on November 20, 2023. 2G and 4G communication modules can be interchanged. Previously purchased items are not supported.

If you need to replace 2G with 4G modules in the future, follow the previous steps (ignore the following instructions if not replacing modules):

95+0/1+OK (1 is a 4G module, 0 is a 2G module, factory default is 0)

97+user group number (5 digits)+confirm

98+user group passwords (7 digits)+confirm

991+OK (991 turns on GPRS internet access and turns off settings 99+OK)

For 4G:  Frequency band:   B1/B3/B5/B7/B8/B20/B28(LTE-FDD); B38/B40/B41(LTE-TDD);    GSM850/EGSM900/DCS1800/PCS1900(GSM)

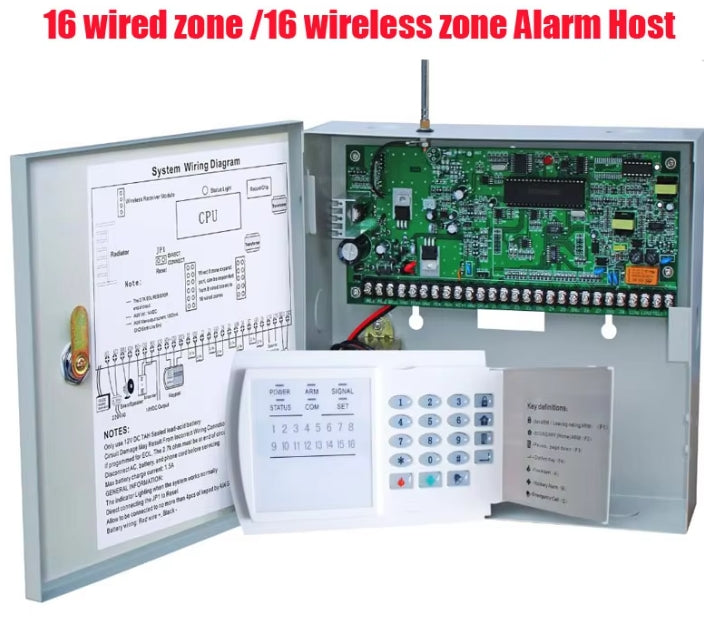

WIRED AND WIRELESS ALARM PANEL FEATURES

1.16wired zones and 16 wireless zones
2.Support 4 keypads at most

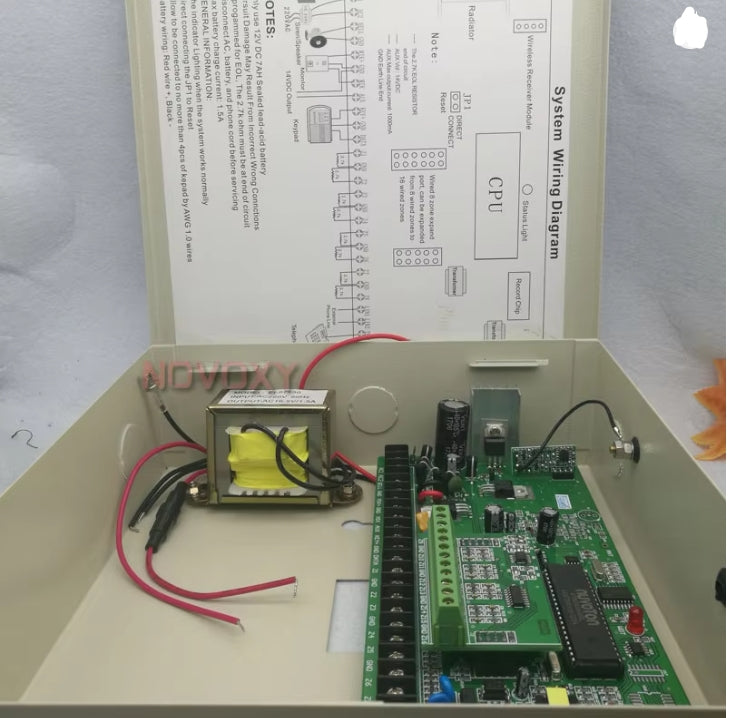

3.Contain keyboard, built-in power supply,recording module, wireless receiving module
4.CONTACT. ID, ADEMCO4 + 2 communication protocol
5.5 Arm Mode:leave arm,perimeter arm,sing zone arm,delay arm,remote arm
6.5 zone type:Instant Zone, Delay Zone, 24 Hours Zone, Perimeter Zone, and Bypass Zone
7.Can record the voice for 10 to 20 seconds, proceed voice alarm
8.Can dial 6 groups of telephone number and 1 alarm center telephone number.Trigger alarm,circular dial.
9.1 group 6 bits primary passwords, 15 groups subsidiary setting passwords are available to improve security

WIRED AND WIRELESS ALARM PANELPARAMETER

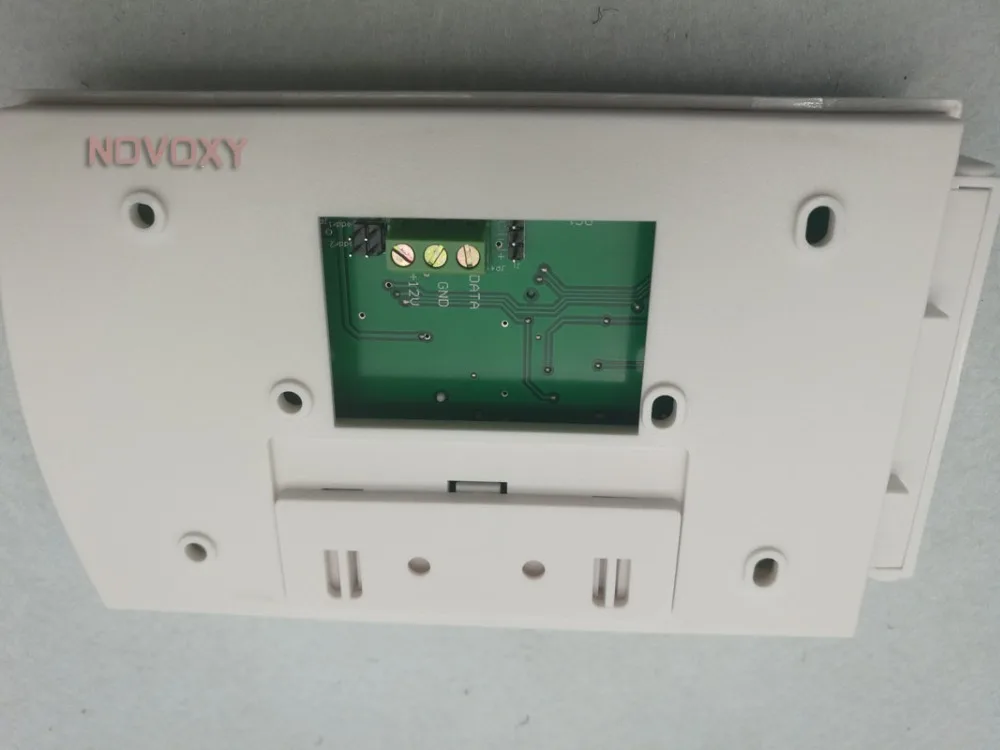

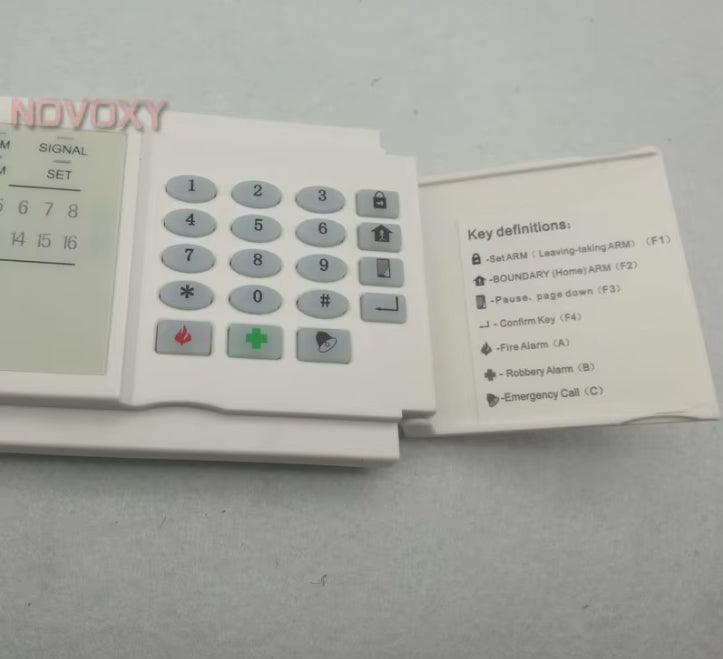

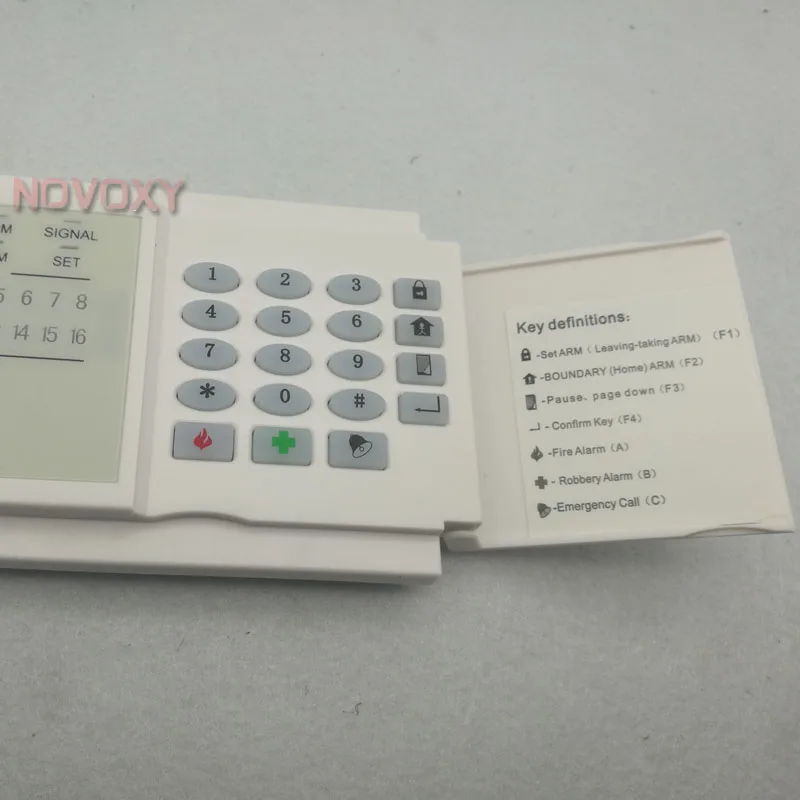

Keyboard   picture display:
