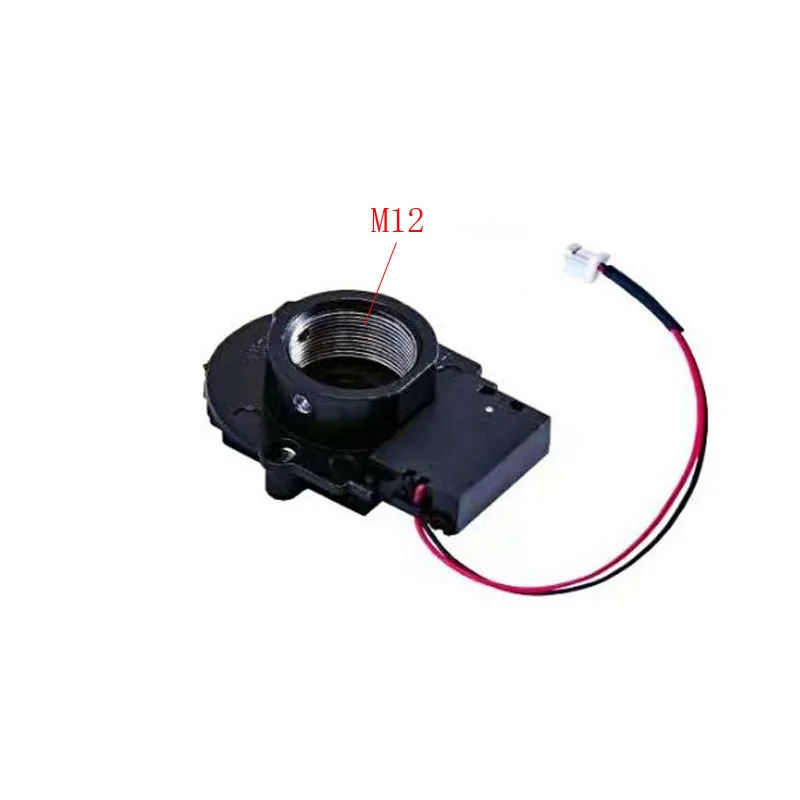

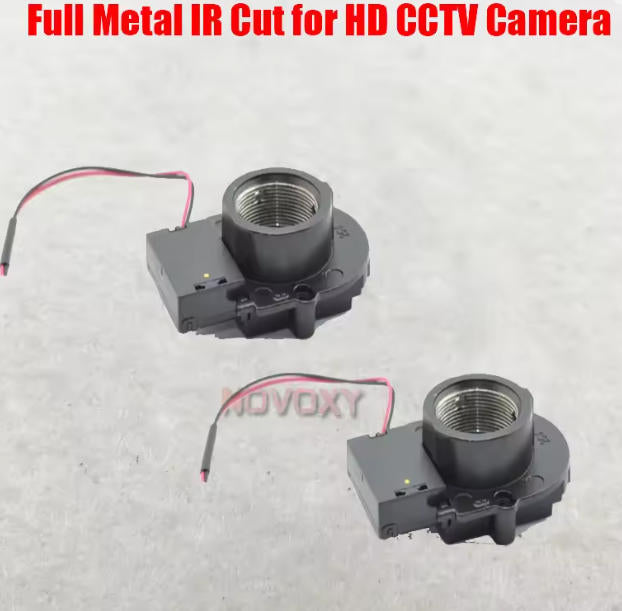

8mp 12mp Full Metal IR Cut Filter for 2mp 5mp High Quality CCTV IP Camera Module Accessories M12*0.5 MTV Mount Lens

Full Metal High Quality  CCTV Camera IP camera Module Accessories M12*0.5 MTV Mount Lens IR-Cut Filter, Free shipping

Note:

1. 1-5MP :  Max support CMOS sensor  size1/2.7,

2. 8-12Mp:   Max support CMOS sensor size 1/1.8"

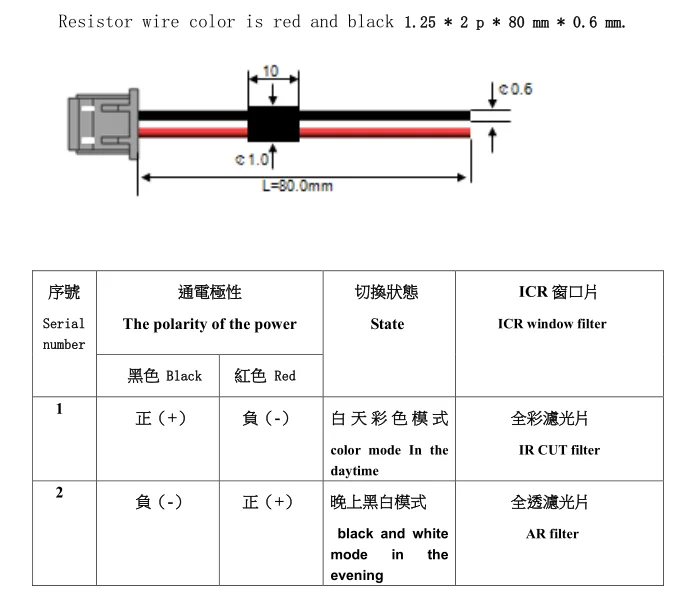

3. If the image is reddish color ,Please exchange the red and black wire poistion.

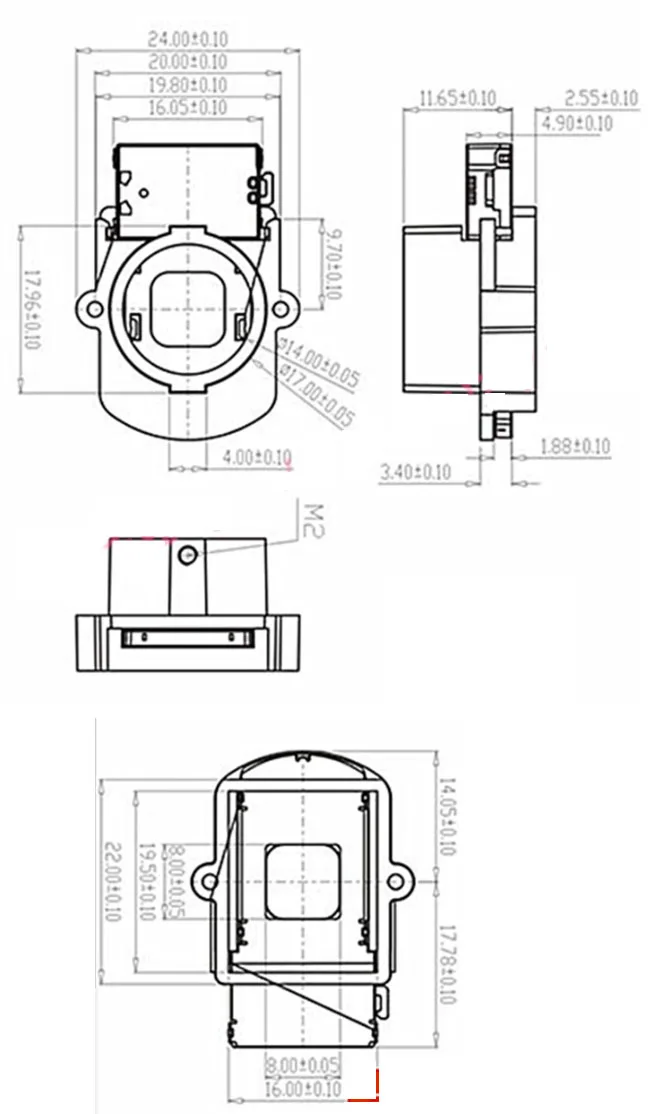

Their hole distance all are 20mm

Function:
1. Fixed daytime color cast problems, enhancing the brightness at night.
IR-CUT filter switch automatically according to external light along with the strength of automatic switching,
making the image to achieve the best results. That is, during the day or night,
the dual filter can automatically switch filters, therefore, whether in the next day or night,
can get the best imaging results.

2. According to the instruction automatic switch infrared cut-off and the full spectrum glass,
day and night switch, automatic positioning,
in order to achieve infrared end filter work during the day time,
sunshine is vivid, restore the true color. Full spectrum glass work at night,
and increase low illumination, night vision is very clear.

3. Use on the camera board, to modify the problem of partial color, out of focus,
let video images do not lose focus, unbiased color and excellent resolution.

4. To filter the hard light to make the picture color soft, to accieve human eyes visual color.

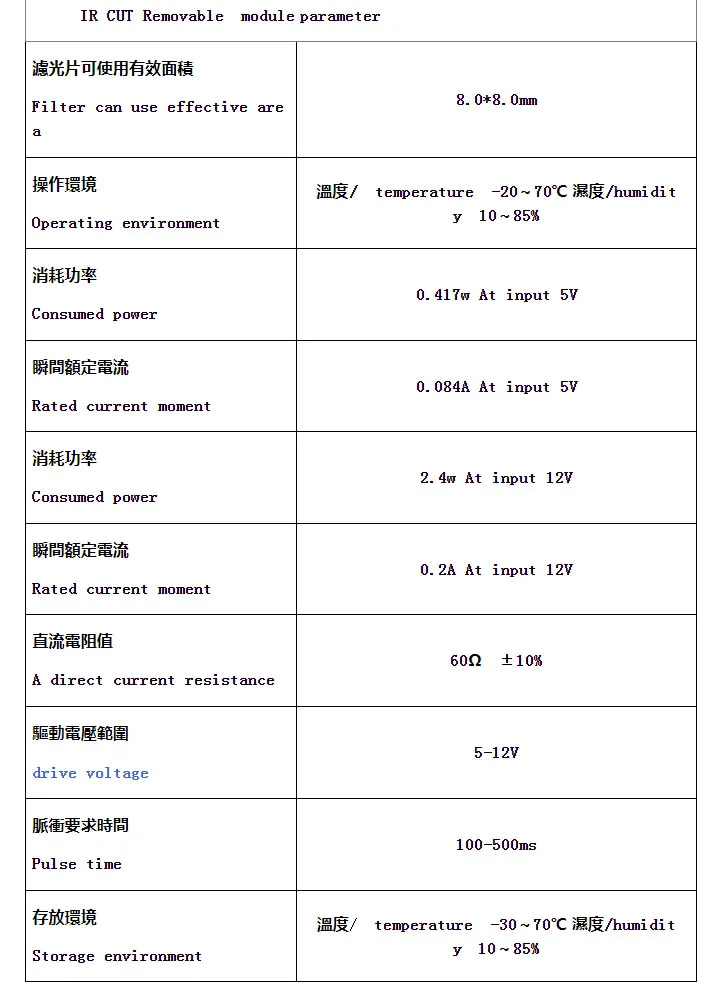

1-5MP  IR CUT Parameter

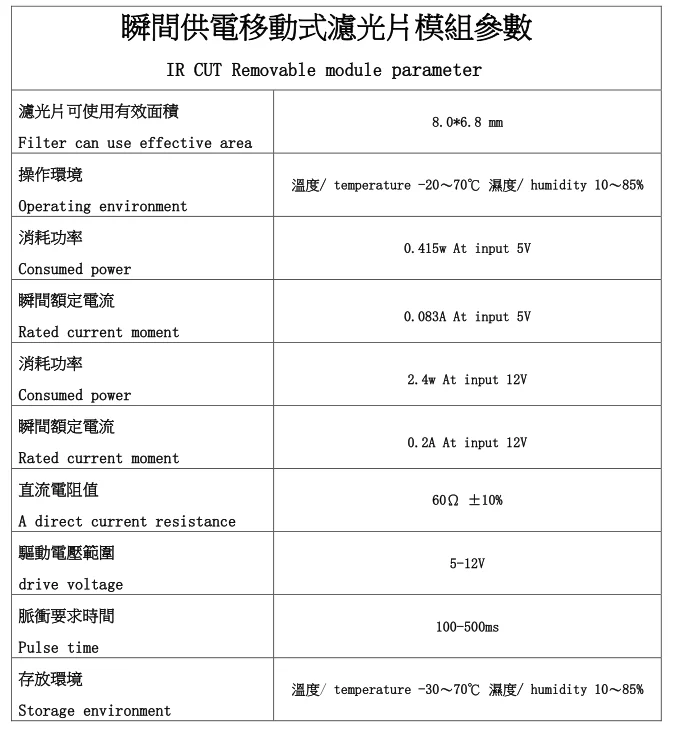

8-12MP  IR CUT Parameter:
