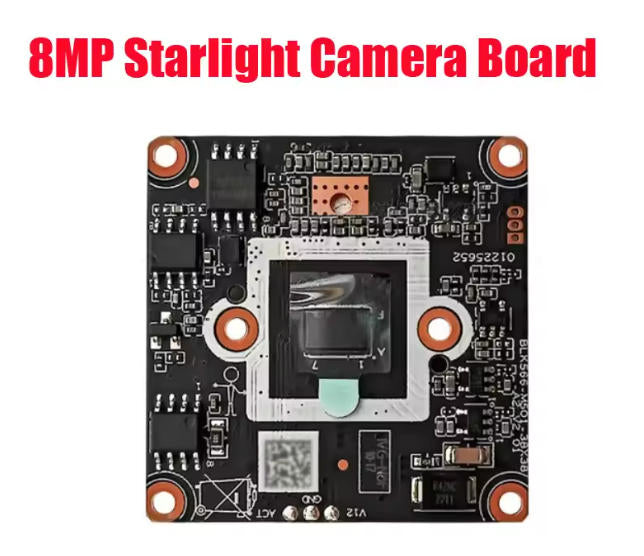

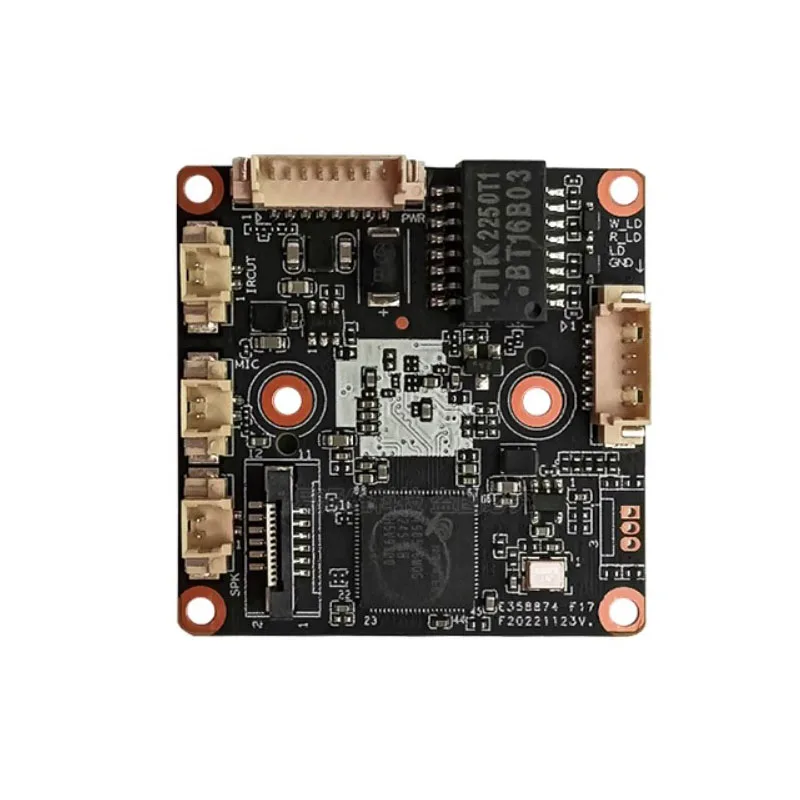

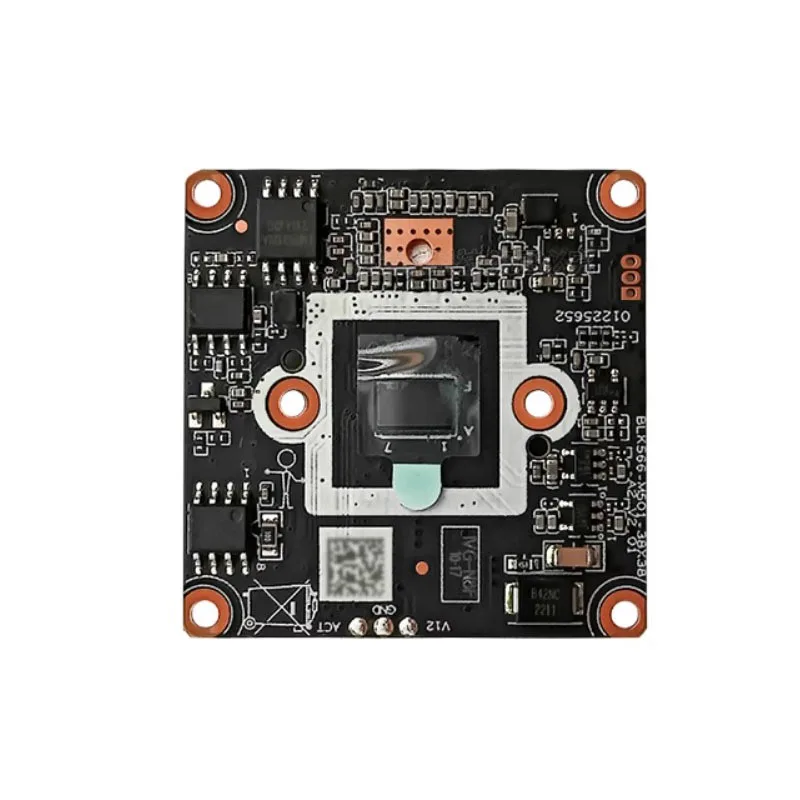

8MP N8F IP Camera Board HD H.265 Starlight Intelligent Analysis 3840x2160 Pixel 1/2.7' Network Module for Security Surveillance

DIY HD H.265 4k 8MP  Intelligent analysis  3840*2160Pixel  1/2.7" IP network Camera Module board

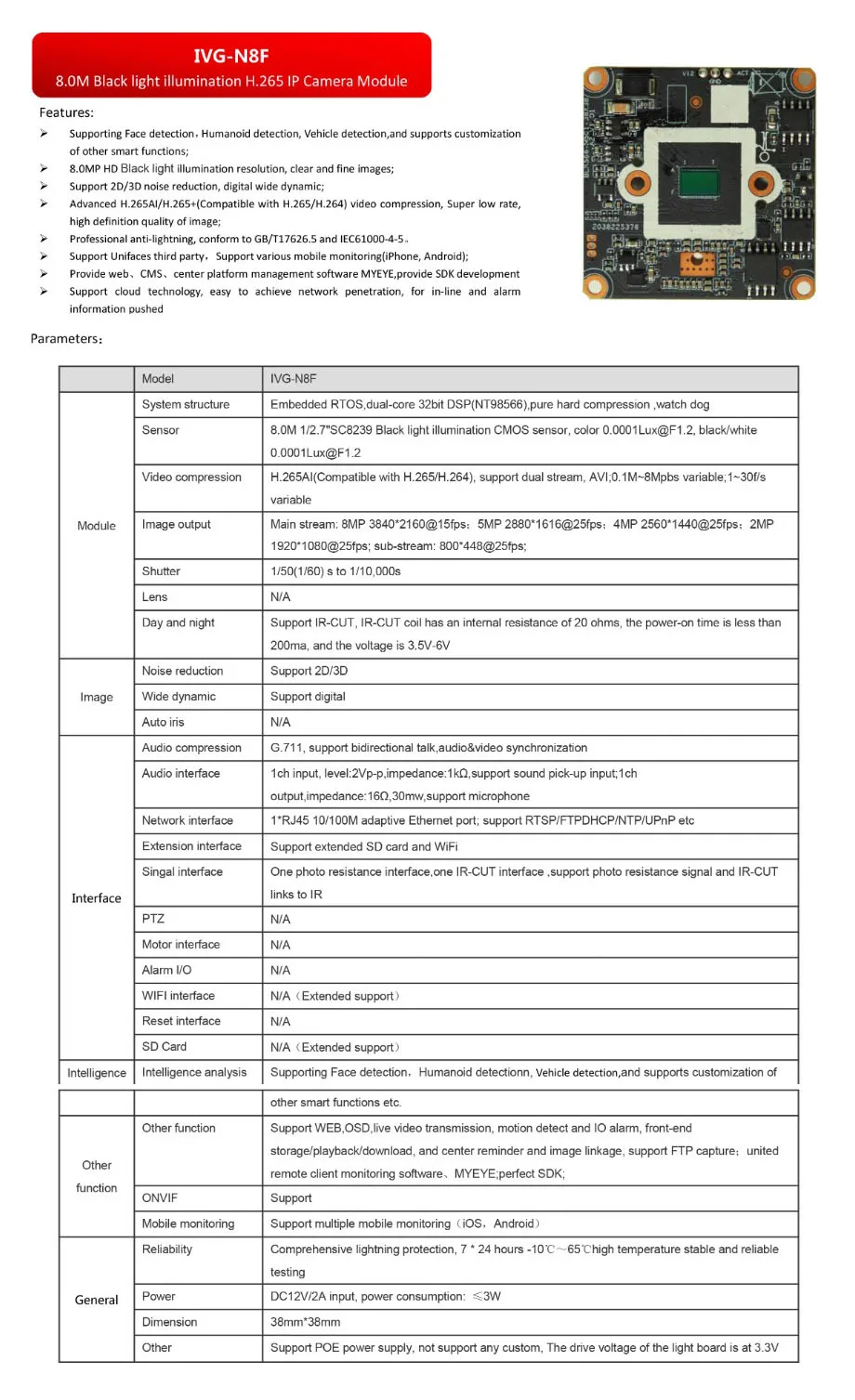

Feature:

Support face detection, human shape detection, support customization of other intelligent functions;

8.0MP resolution, low illumination, clear and delicate images;

Support 2D/3D noise reduction, digital wide dynamic function;

Advanced H.265AI/H.265+ (compatible with H.265/H.264) video compression technology, ultra-low bit rate, high-definition picture quality;

Lightning protection, in line with national standard GB/T17626.5, international standard IEC61000-4-5;

Support ONVIF protocol, can access third-party back-end/platform, support mobile phone monitoring (iOS, android);

Support Web terminal, CMS, central management platform software MYEYE, provide SDK development;

Support multiple cloud technologies, realize network penetration, front and back end docking, push alarm information to mobile phones and other functions;

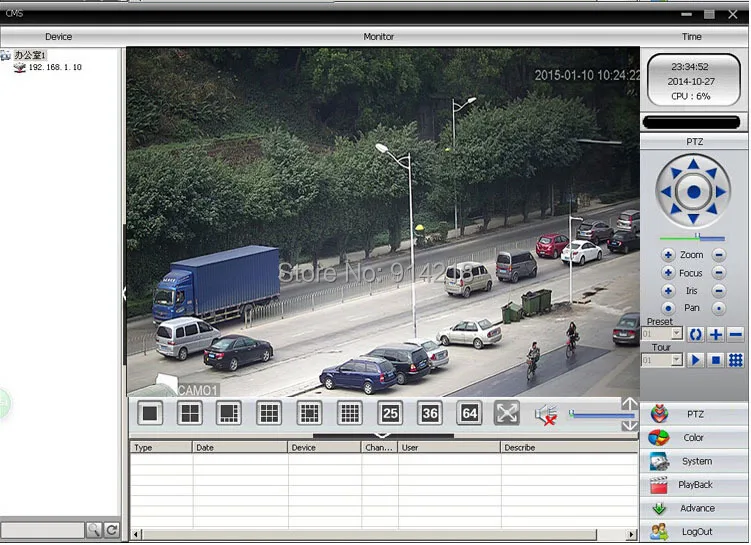

1.View image via CMS

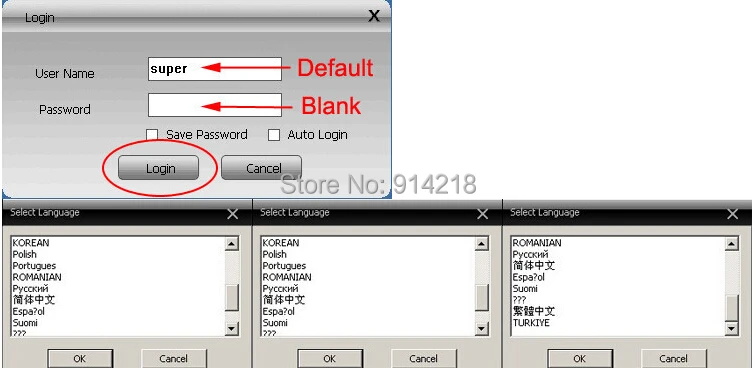

Step1.Install CMS on your PC and login in after select language:

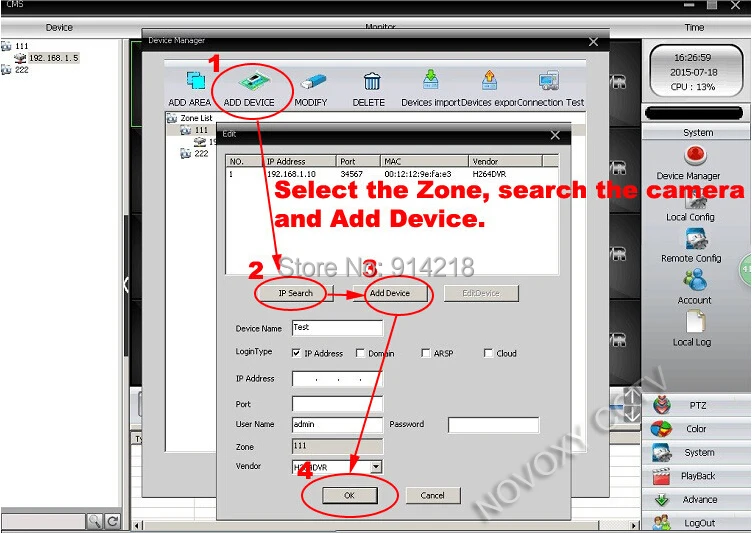

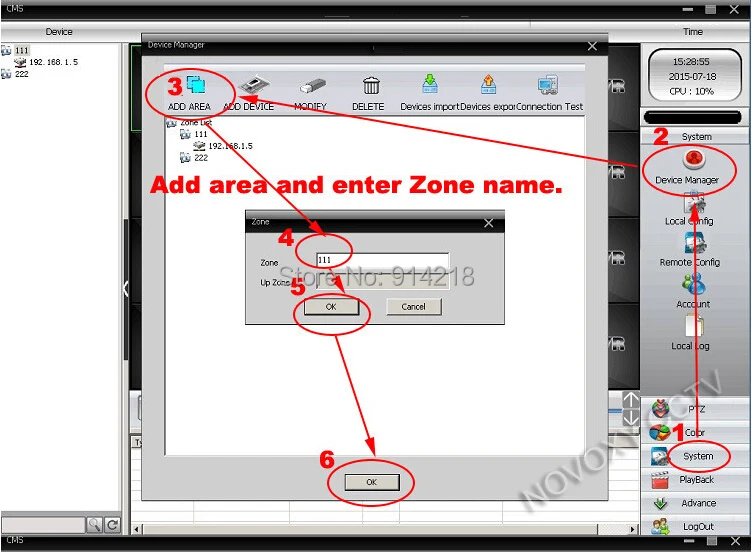

 Step 2:  Add Device

2.View image via IE

LAN: direct input camera IP address in IE brower

We main explain how to view image via WAN

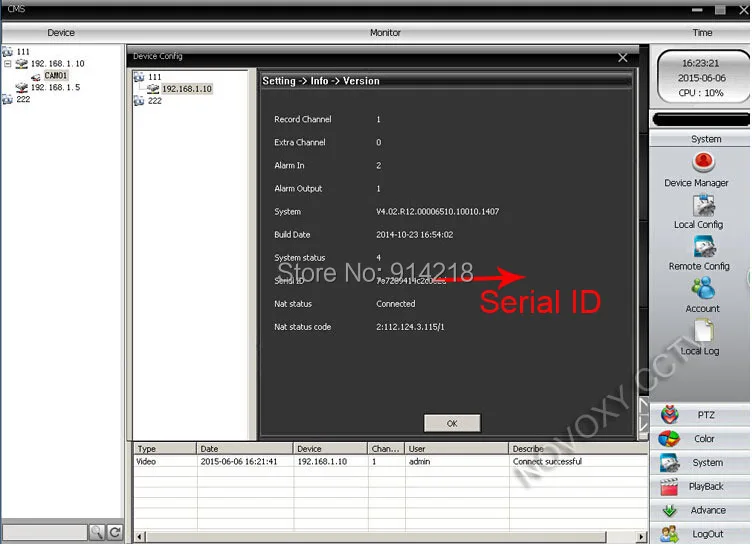

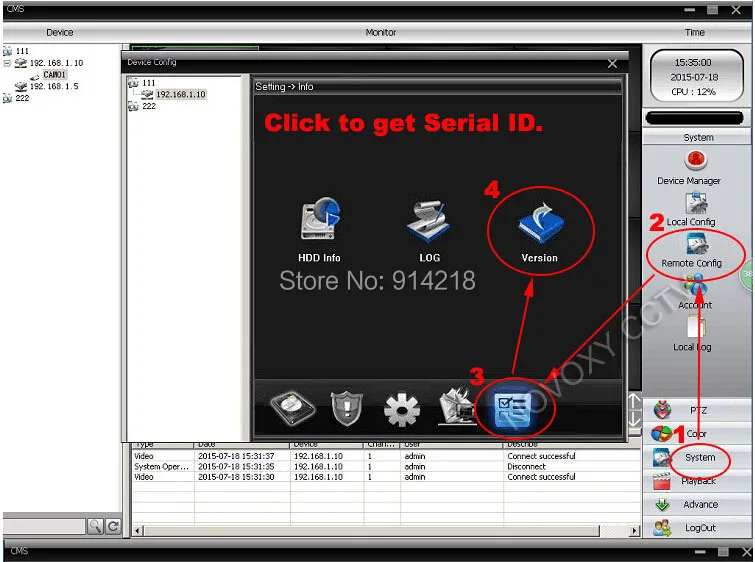

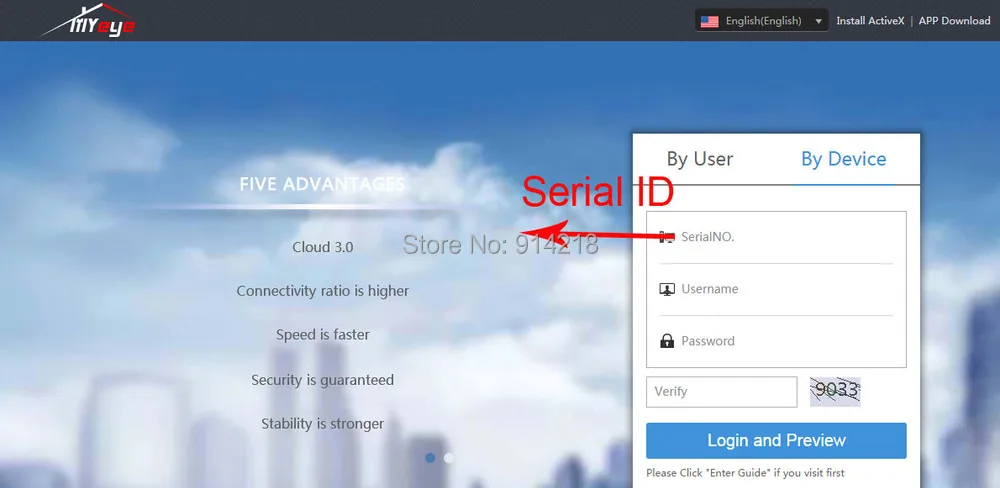

Step1: Get the camera serial ID number from CMS

Step 2:

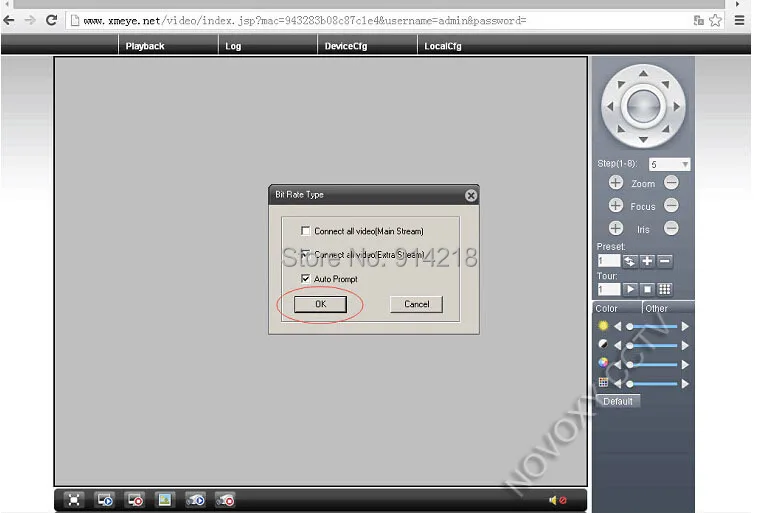

Open Cloudy website: www.xmeye.net  and login via serial ID number

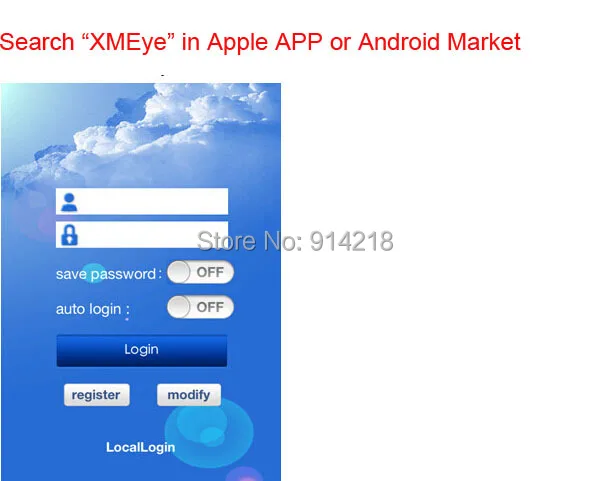

3. View image via Phone

3.View image via phone
