CVBS signal to HDMI signal HDMI to CVBS signal output UVC free drive

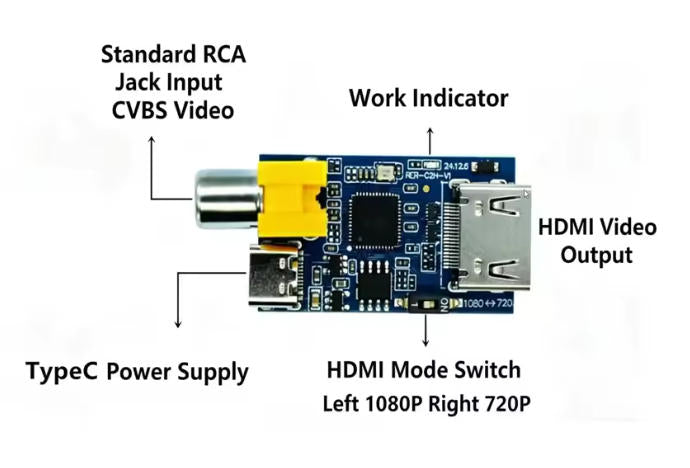

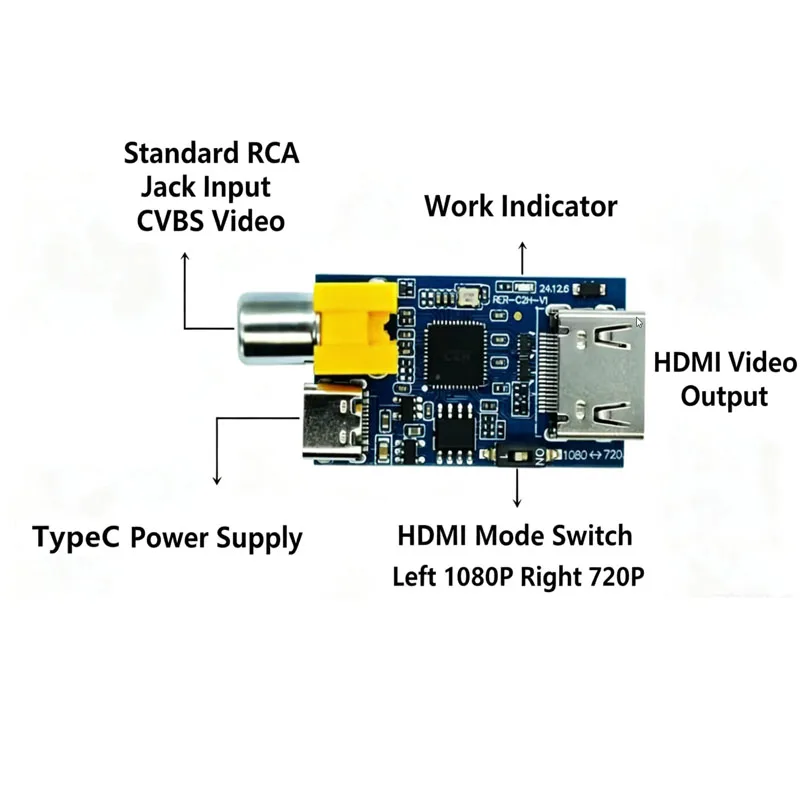

CVBS to HDMI signal output:

Video input format:  CVBS video signal with automatic PAL/NTSC standard compatibility recognition

Video output format: HDMI v1.4 1080P60 and 720P60, switchable via a toggle

power supply method:  TypeC 5V

operating current:  1080P:190mA720P: 170mA

PCB size:  39.5mm x 22.5mm

Notes:

1. This product only converts videos and has no audio function

2. This product does not come with wires

When there is no input signal, HDMI displays a blue screen

4. Automatically recognize PAL and NTSC formats without the need for settings

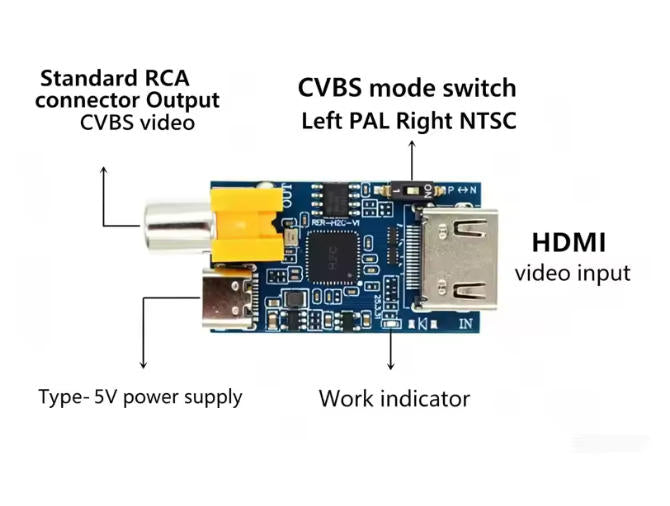

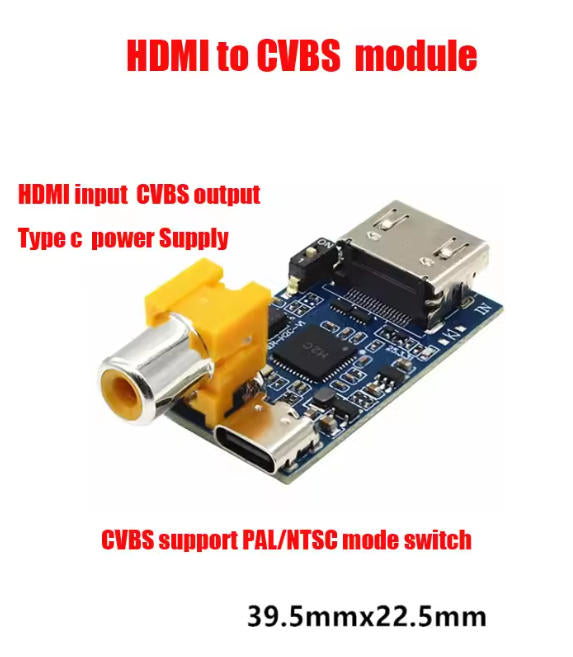

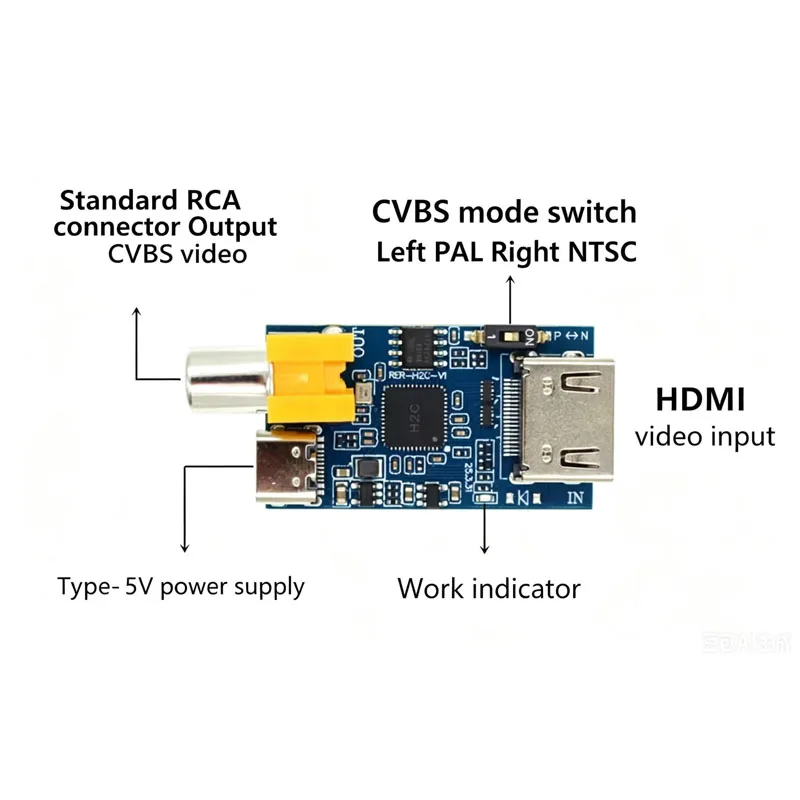

HDMI to CVBS signal output:

Video input format: HDMI v1.4 input score should

Video output format:  CVBS video signal switches PAL/NTSC mode by switch

power supply method:  TypeC 5V

operating current:  220mA

PCB size:  39.5mm x 22.5mm

Notes:

1. This product only converts videos and has no audio function

2. This product does not come with wires

When there is no input signal, CVBS blue screen

4. Automatically recognize input resolution, no need to set
