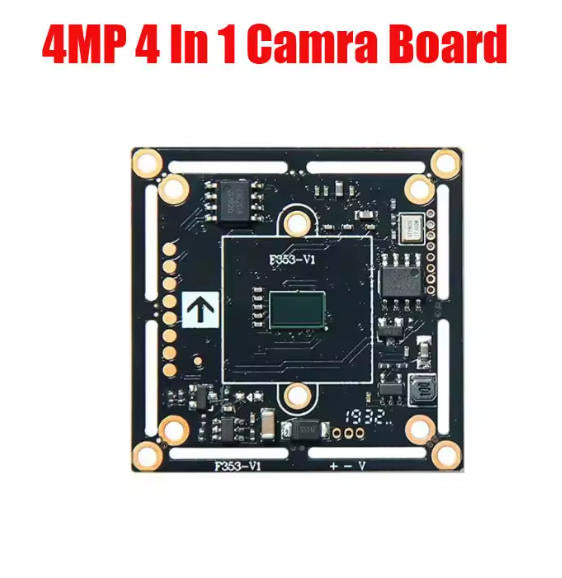

DIY 4 in1 AHD TVI CVI CVBS 4MP pcb camera module board GC4053+FH8538M
DIY 4 in1 AHD TVI CVI CVBS 4MP pcb camera module board GC4053+FH8538M
Regular price
$7.90 USD
Regular price
Sale price
$7.90 USD
Quantity
Couldn't load pickup availability
DIY 4 in1 AHD TVI CVI CVBS 4MP pcb camera module board GC4053+FH8538M
Note:
Default signal is AHD, You can switch signal output via OSD Menu.
Menu switching method: Factory default AHD signal:
Up: AHD Down: CVI Left: TVI Right: CVBS (press and hold for 5 seconds to release switch)
System switching: PAL/NTSC switch directly in the menu
-

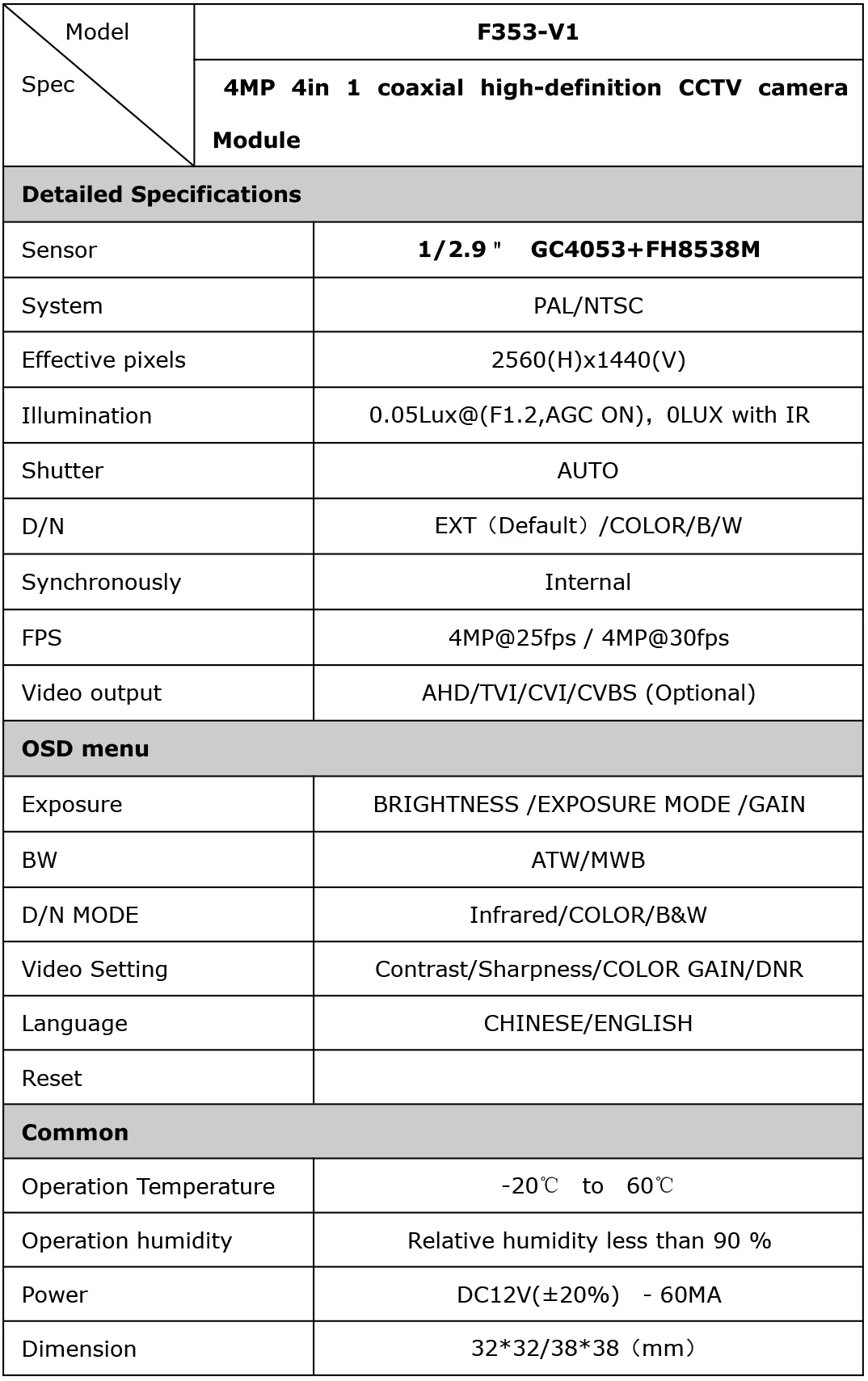

Support 4 in 1 Coaxial high-definition output, with excellent performance, clear and bright picture
-
Lux: 0.05Lux@(F1.2,AGC ON)，0LUX with IR
-
Support IR-CUT，CDS external control , D/N，
-
Support OSD and Customization
-
Adaptive Digital Noise Reduction，2D-DNR
-
Support UTC
|

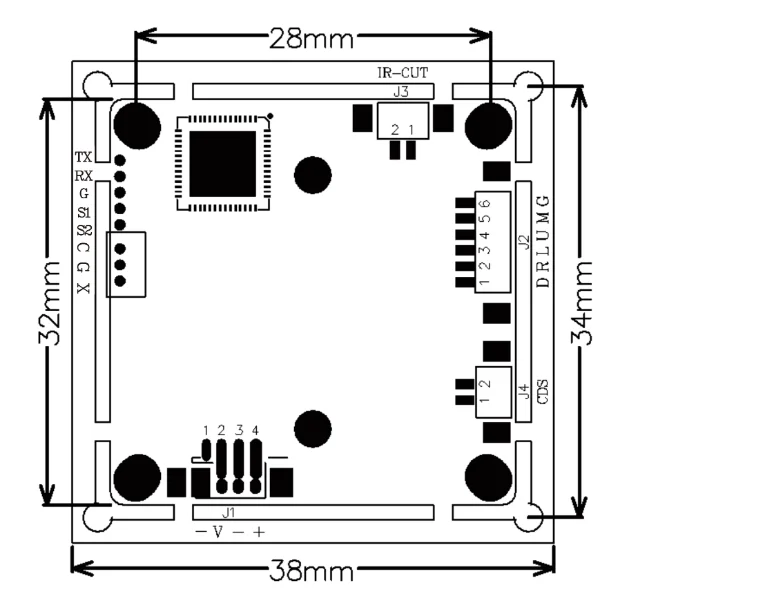

J1 |
J2 |
J4 |
J3 |
||||
|
1 |
GND |
1 |
DOWN |
1 |
CDS |
1 |
IR-CUT1 |
|
2 |
VIDEO |
2 |
RIGHT |
2 |
CDS |
2 |
IR-CUT2 |
|
3 |
GND |
3 |
LEFT |
|
|
|
|
|
4 |
DC12V |
4 |
UP |
|
|
|
|
|
|
|
5 |
MENU |
|
|
|
|
|
|
|
6 |
GND |
|
|
|
|
