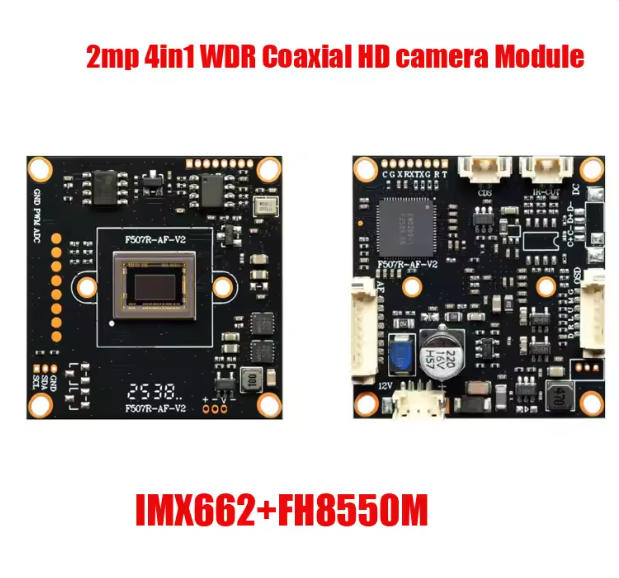

DIY UTC Function Starlight 2mp AHD TVI CVI CVBS 4 in 1 IMX662+FH8550 WDR Camera Module Support OSD Cable Control

DIY Starlight IMX662 HD Camera Module 2mp 4 in 1 WDR Coaxial high-definition camera Module

1. You can switch to other singal output or NSTC system by yourself ,please make sure your DVR support the corresponding video signal before you switch output to other singal, or else, it will not  show any image ,and you may have trouble switching it back

2. The resolution is 960H for CVBS mode,  AHD TVI CVI signal output  is 2MP resolution

3.  Only CVBS signal can directly connect wtih display,   AHD TVI CVI can not directly connect with display,   they need to be work with corresponding  AHD TVI CVI  DVR.

Menu switching method:

Up: AHD Down: CVI Left: TVI Right: CVBS (Press and hold for 5 seconds to release switch).

Standard switching:

PAL/NTSC switches directly within the menu.

Features：

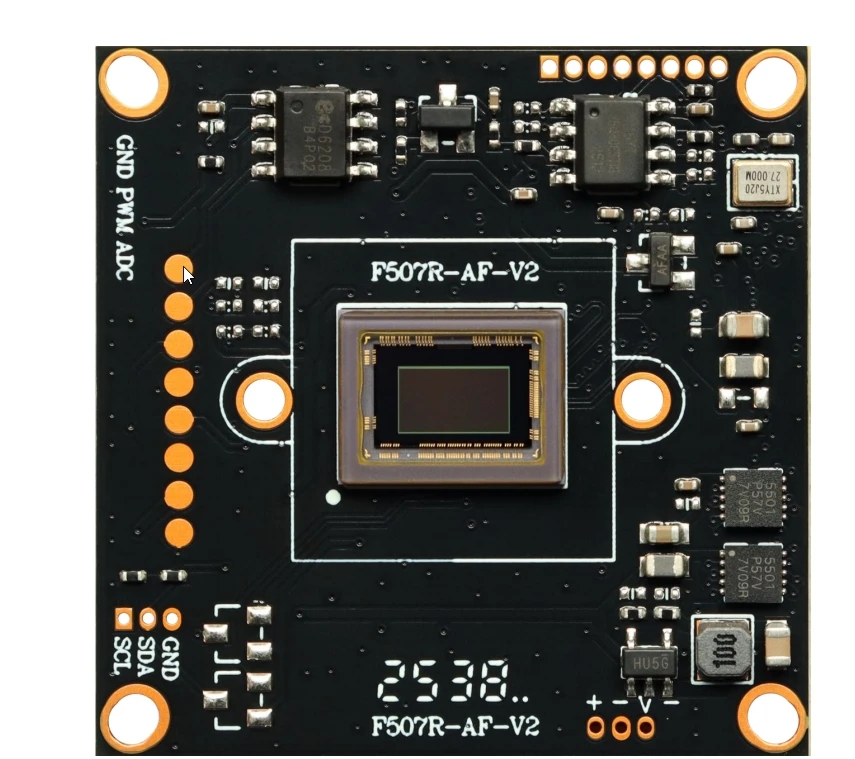

l Use sony IMX662 2MP low illumination CMOS，capture moving images
l Excellent performance, clear and bright picture
l Lux:0.01Lux@(F1.2,AGC ON)，0LUX with IR

lSupport AF lens driver interface

l Support  IR-CUT,CDS external control ,D/N
l Support  OSD
l Support DWDR
l Adaptive Digital Noise Reduction,2D-DNR，3D-DNR
l Support  UTC  function
