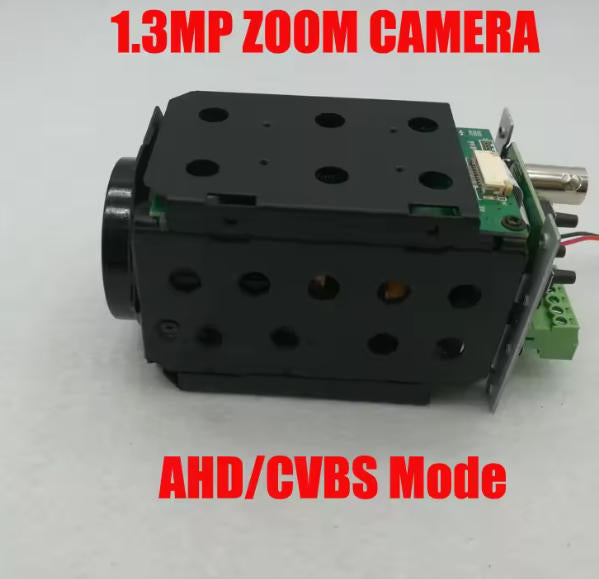

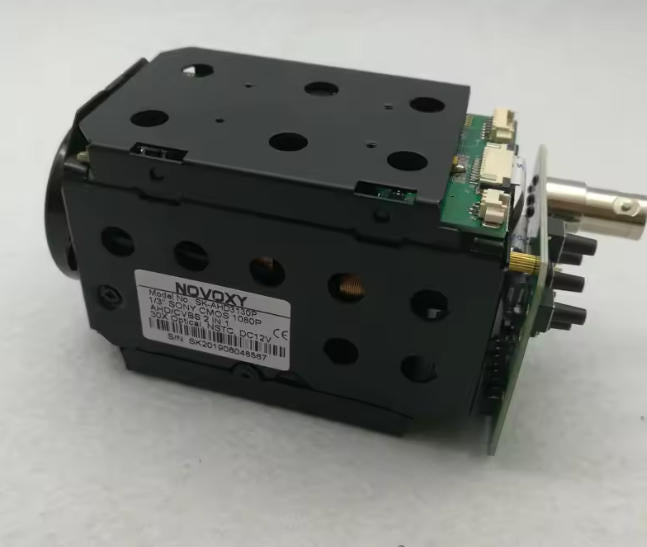

NOVOXY 30X 18x ZOOM Camera 1.3MP AHD CVBS 2 in 1 Digital ICR CCTV Speed Dome Block Camera Module With Control Board Lens

free shipping  1.3MP AHD  30x Optical Digital ICR CCTV Speed Dome Zoom Block Camera Module with control board Lens Free Shipping

Note:

 Type 1 .   The camera with control board support  Pelco protocol, Do not support Viscal protocol

 Type 2:    The camera support viscal protocol,  do not support pelco protocl

please make sure you have AHD supported DVR for displaying images before you switch output to AHD, or else, it will not  show any image, and you must need one AHD  DVR to switch it back to CVBS.

Specifications

• High Resolution
  This camera adopts a high density CCD, which provides clean, noiseless and reliable pictures

• 30x Auto Focus
  18x Optical zoom with IR sensor: f=5~90mm

• OSD Menu/Cable control/RS485 Control
  Remote control operations are available through RS485 signal interface, as well as control the lens by external cables

• Day&Night Function

• Auto Focus
  The camera can focus automatically from 0.1m to limitless distance

• Pickup Device:               1/3" 1.3mp cmos sensor

• Power Supply:               DC12V +/-10%, 3.6W

• Sync Mode:                   NTSC 60Hz/PAL 50Hz, Internal Sync

• Horizontal Resolution:    960P(AHD )   1200TVL(CVBS)

• Mini. Illumination:          0.05Lux/F1.2 (Color mode), 0.001Lux/F1.2 (B/W), S/N ratio >60dB(enhanced)

• Video Output:                1.0vp-p 75 ohm

• S/N Ratio:                     >48db

• Focal Length:                 5~90mm

• Lens Zoom:                   18x Optical , dipaly 30x Zoom

• Focus Control :              Auto/Manual/Key Auto

• Iris control:                   Auto

• On-screen Menu:           Address Code, Gain Control, Electronic Shutter, BLC (Backlight Compensation), Focus Control

• Electronic Shutter:         1/50-1/100000sec

• White Balance Control:   Built-in (On/Off)

• Operation Temperature: -10~ 50C degrees

• Operation humidity:       0~96%

• Control Method:             OSD Menu/Cabe Control/RS485 Interface Control

• Protocol:                       Pelco-D

• Baud Rate:                    2400/4800/9600

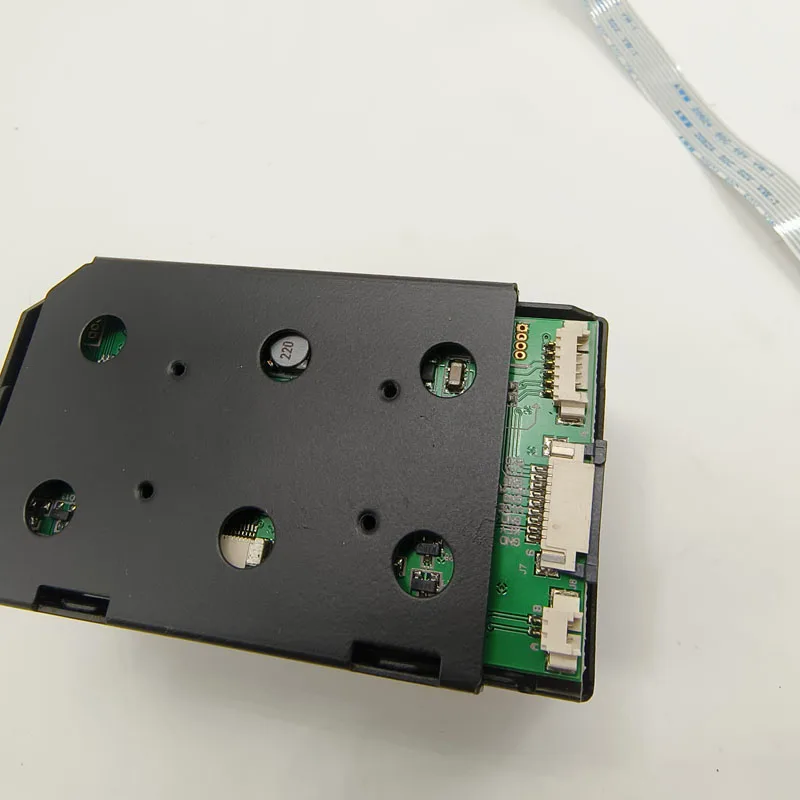

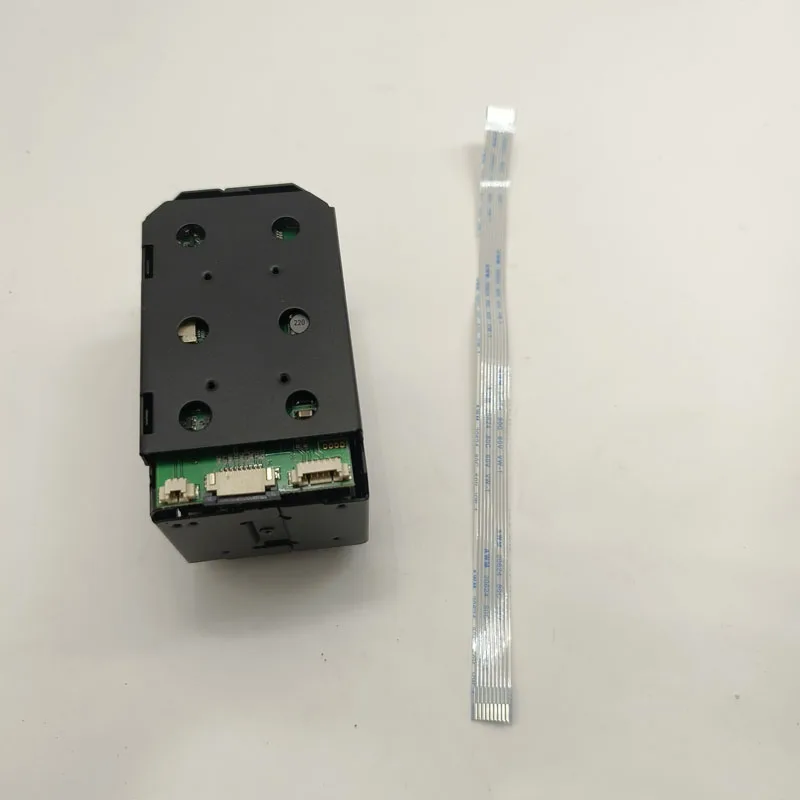

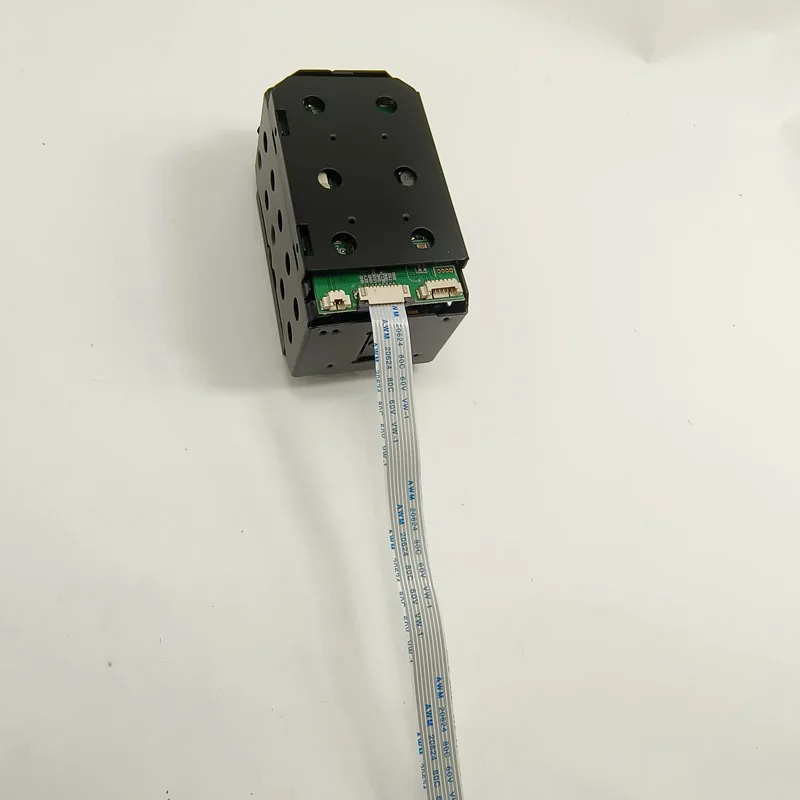

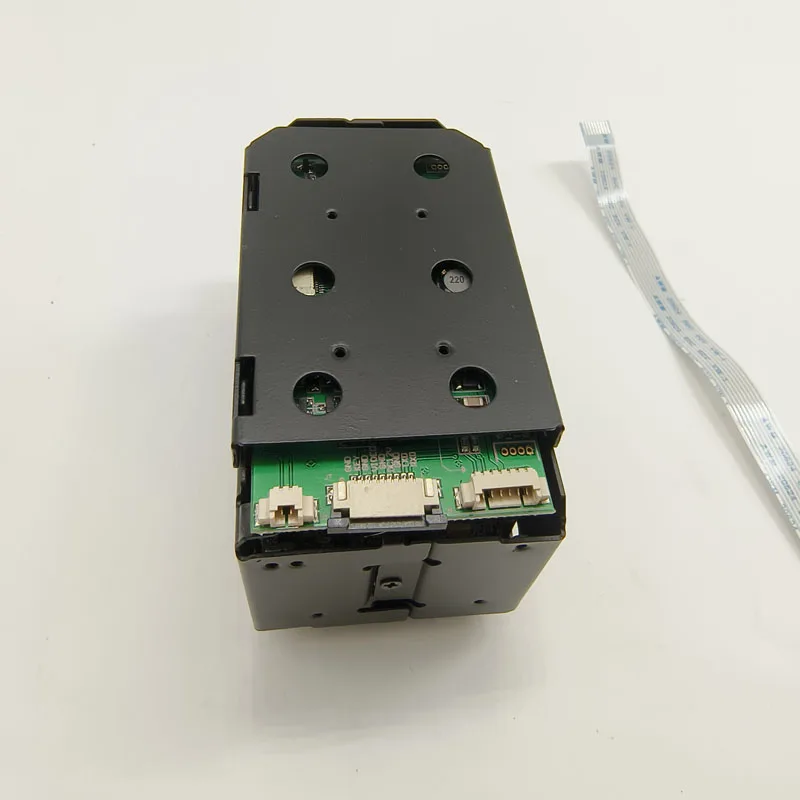

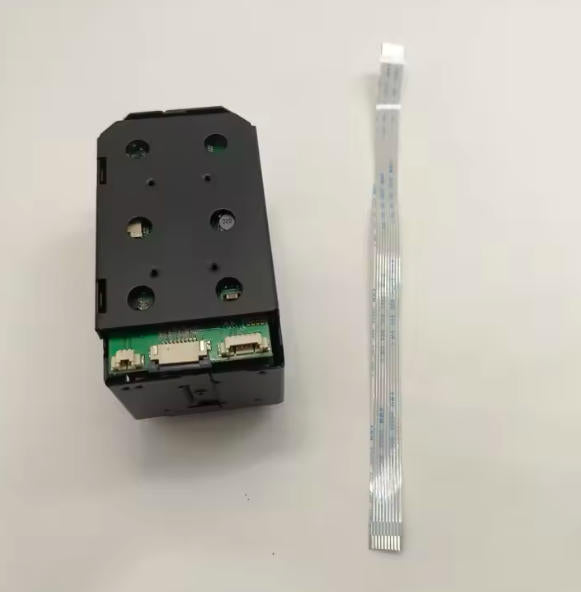

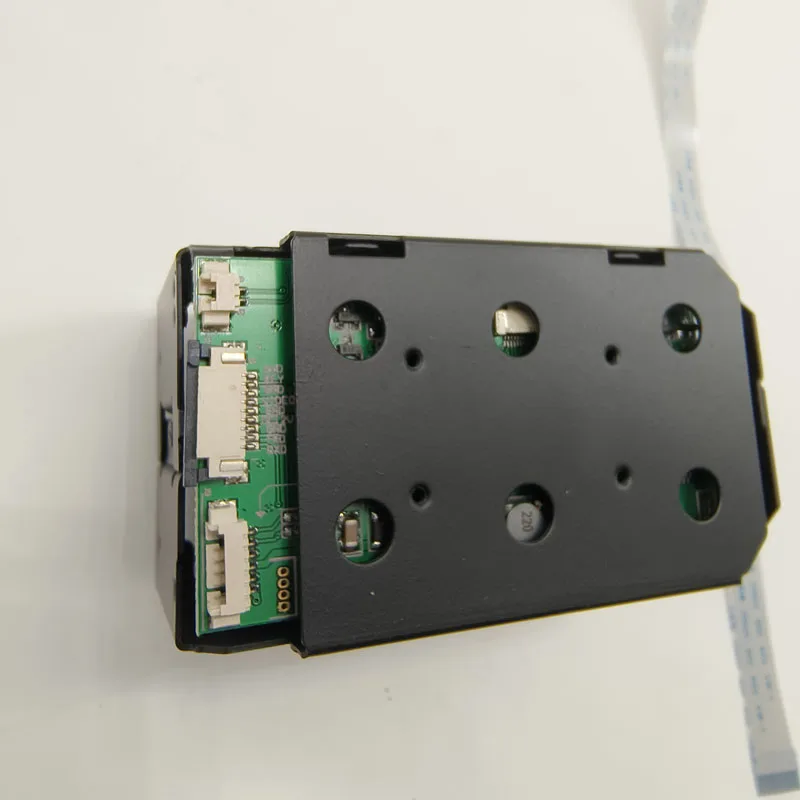

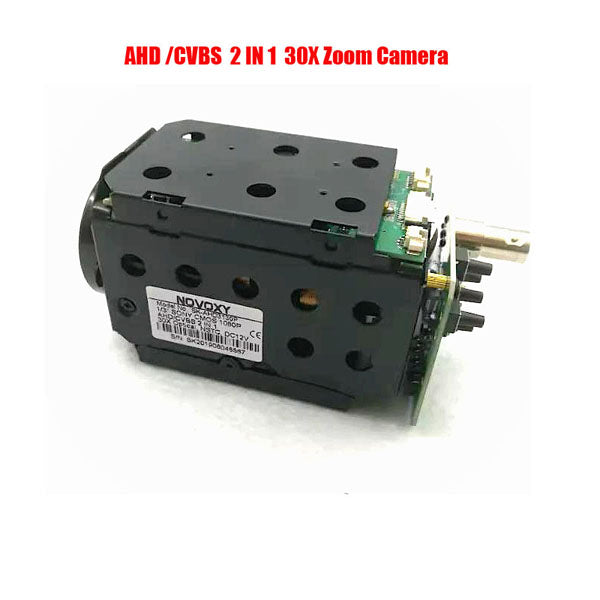

Type 2 picture:
