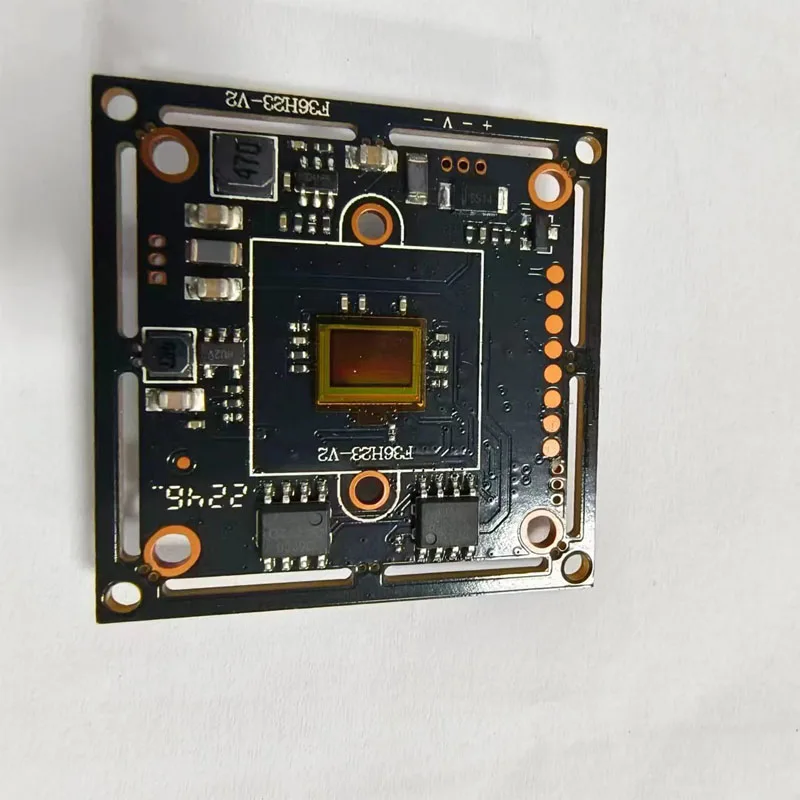

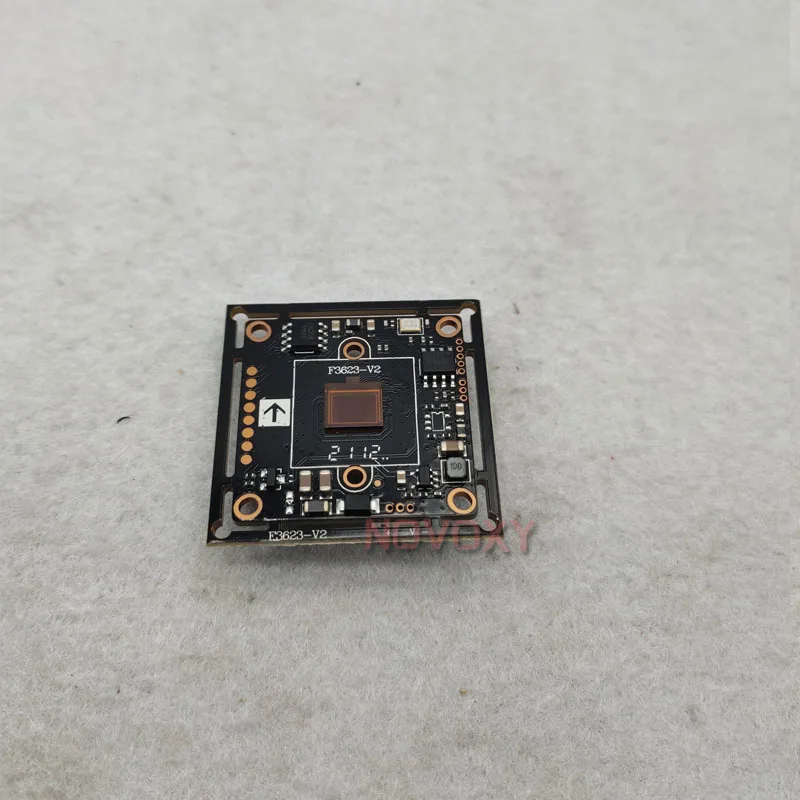

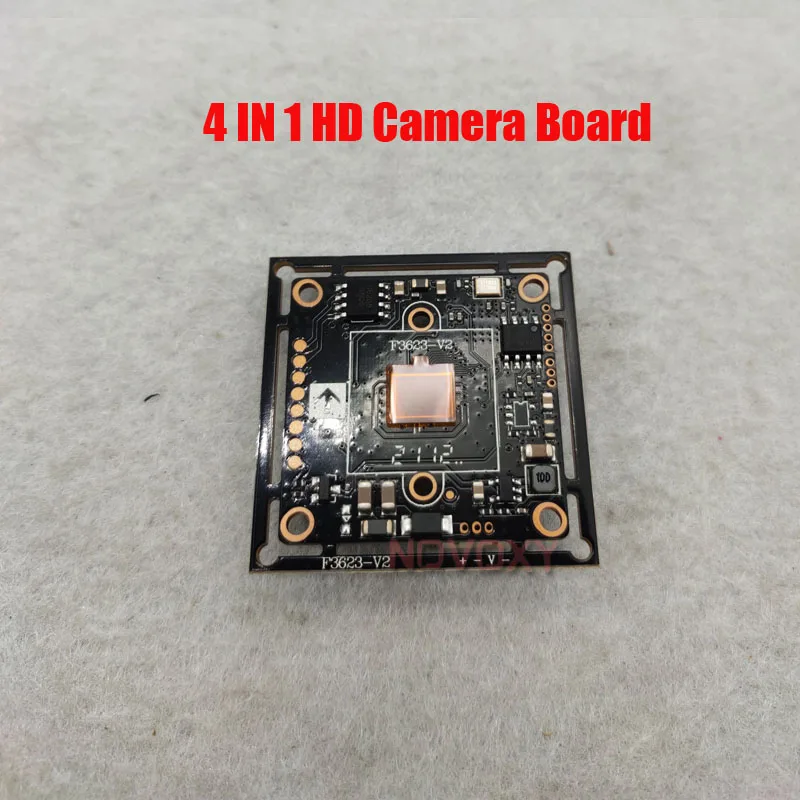

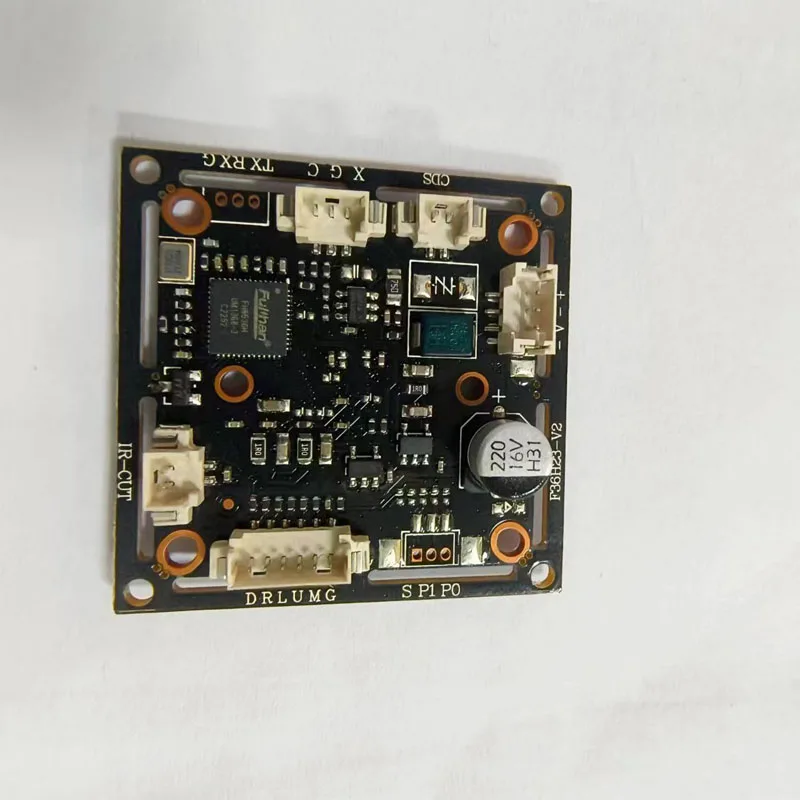

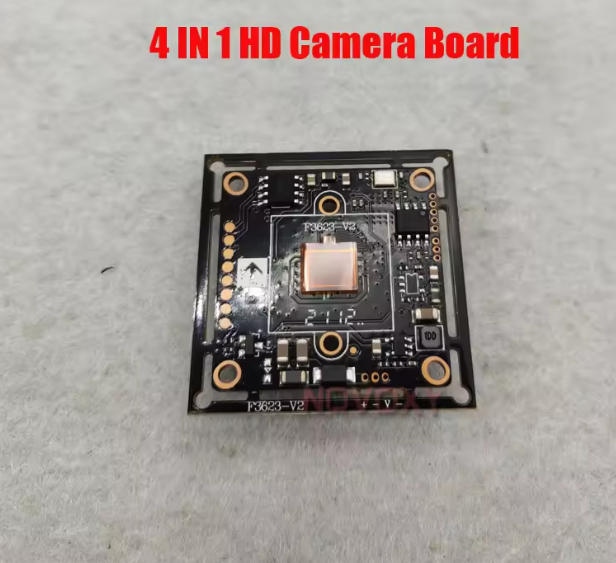

NOVOXY DIY 4 in1 CCTV pcb camera module board F36H23 2MP 1080P IMX323 CMOS +8536H DSP

DIY 3000TVL AHD 2MP  1080P DSP Analog CCTV PCB Board Camera Module  IMX323 CMOS +8536H DSP

1. The camera module default CVBS signal ouput,  if you need other signal ouput, please leave message in your order

2  it is AHD TVI CVI CVBS 4 IN 1 . You choose the correct signal output according to your HD DVR.  Otherwise no image will be displayed . The CVBS can direct to connect with display .   AHD TVI CVI signal can not work to direct connect with monitor or display.

2,The CVBS signal output can work with any DVR , If you do not know what 's DVR in you hand, you 'd better to choose CVBS signal output.

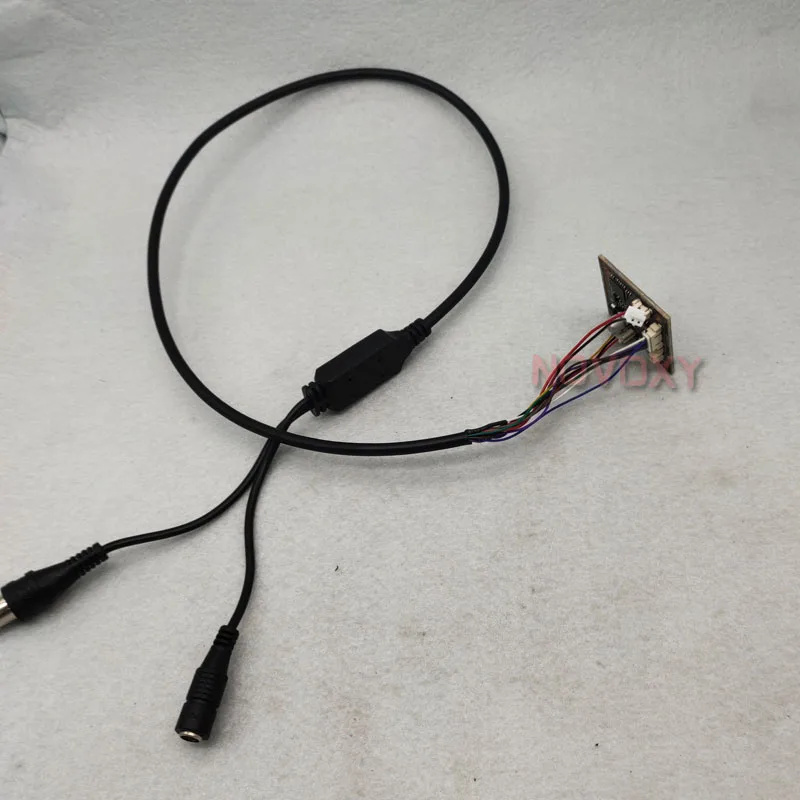

Other accessoriesOptional, Click it to buy

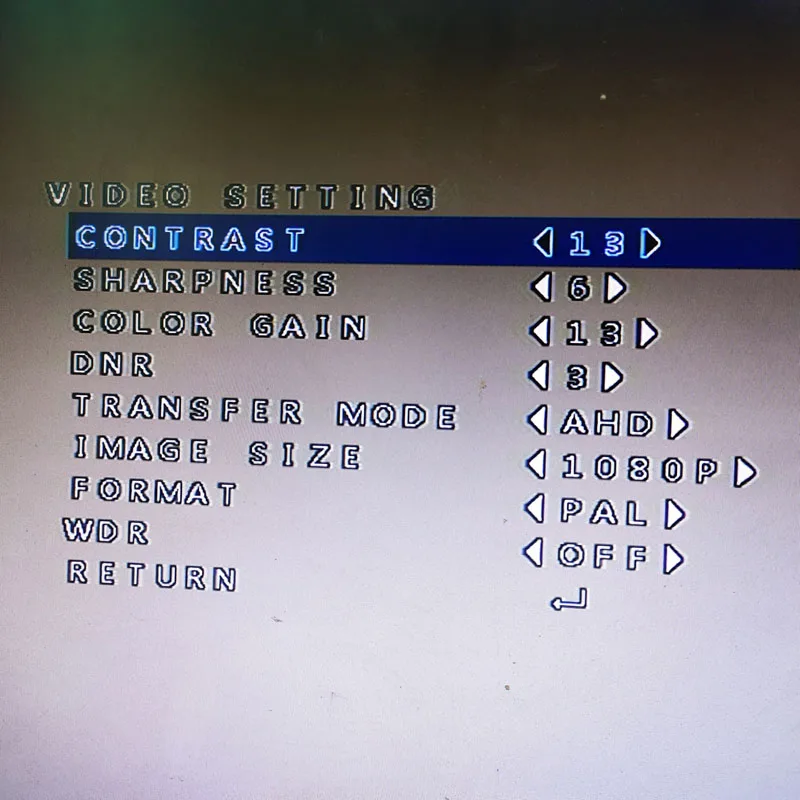

How to shift AHD/CVI/TVI/CVBS Signal by OSD

Specifications:

*Image sensor: 1/3" SONY IMX323 2mp CMOS
*Pixels: 1920 * 1080
*System: PAL / NTSC ( OSD switch)
*Day and night mode: external control (default) / Auto / Color / B & W (OSD switch)
*Horizontal resolution: 1920H (2MP)
*SNR: ≥69dB
*Minimum illumination: 0.01LUX
*Backlight compensation (BLC): AUTO
*Auto Electronic Shutter (AES): AUTO / 1/50 (1/60) -1 / 100,000sec
*Auto White Balance (AWB): AUTO
*IR control input voltage: DC 3V-8V
*Video output: AHD/TVI/CVI/CVBS VIDEO (1080P)
*Video space: 1min≈27MB
*Working voltage: DC12V / 63mA ± 5mA
*Working environment: -20 °C --- 50 °C
*OSD language: English / Simplified Chinese / Traditional Chinese / German / French / Italian / Spanish / Polish / Russian / Portuguese
Dutch / Turkish / Japanese / Hebrew / Arabic

Package Content:

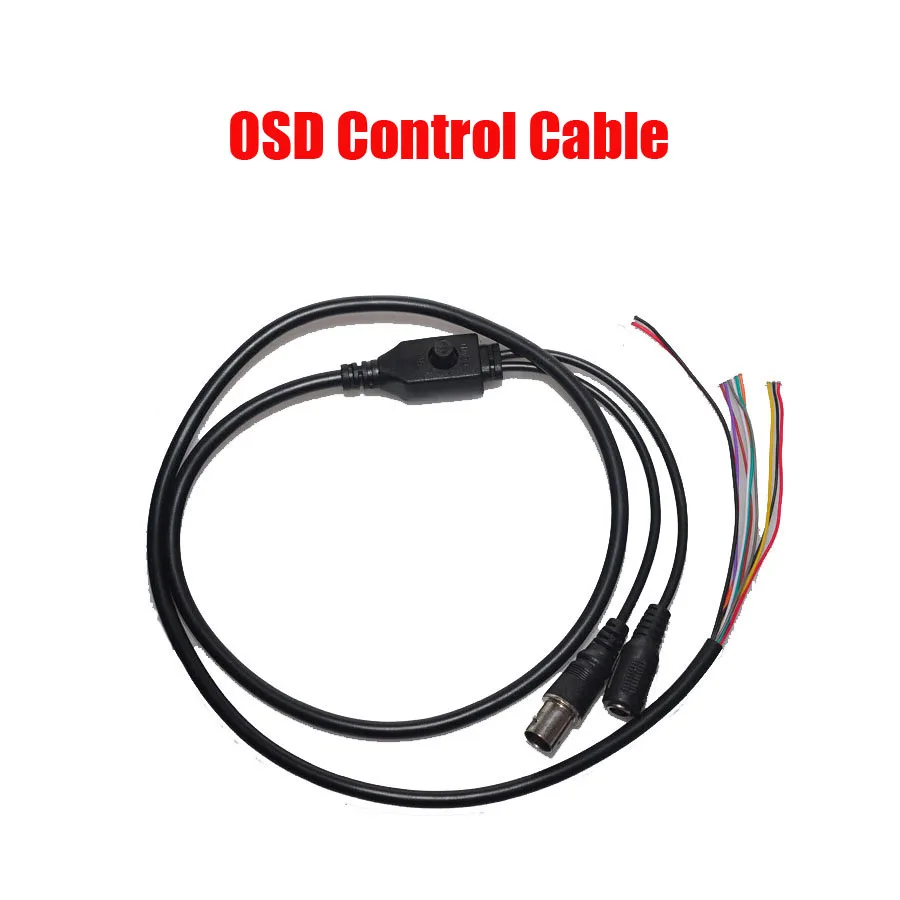

1x 1080P PCB camera module( no inlcuding OSD cable)
