NOVOXY SK-ART7102C2L IMX307 2MP 1080P AHD TVI CVI CVBS 4 in 1 Zoom Camera 30x 20X Optical 5-90mm Varifocal Lens IR CUT HLC
NOVOXY SK-ART7102C2L IMX307 2MP 1080P AHD TVI CVI CVBS 4 in 1 Zoom Camera 30x 20X Optical 5-90mm Varifocal Lens IR CUT HLC
Couldn't load pickup availability

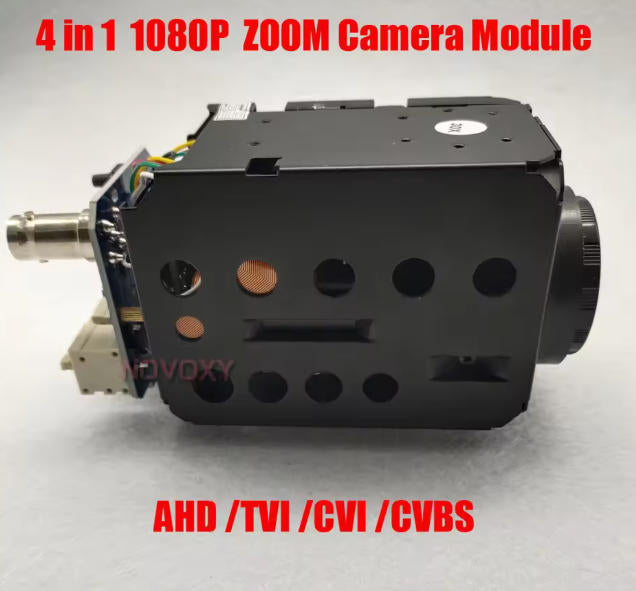

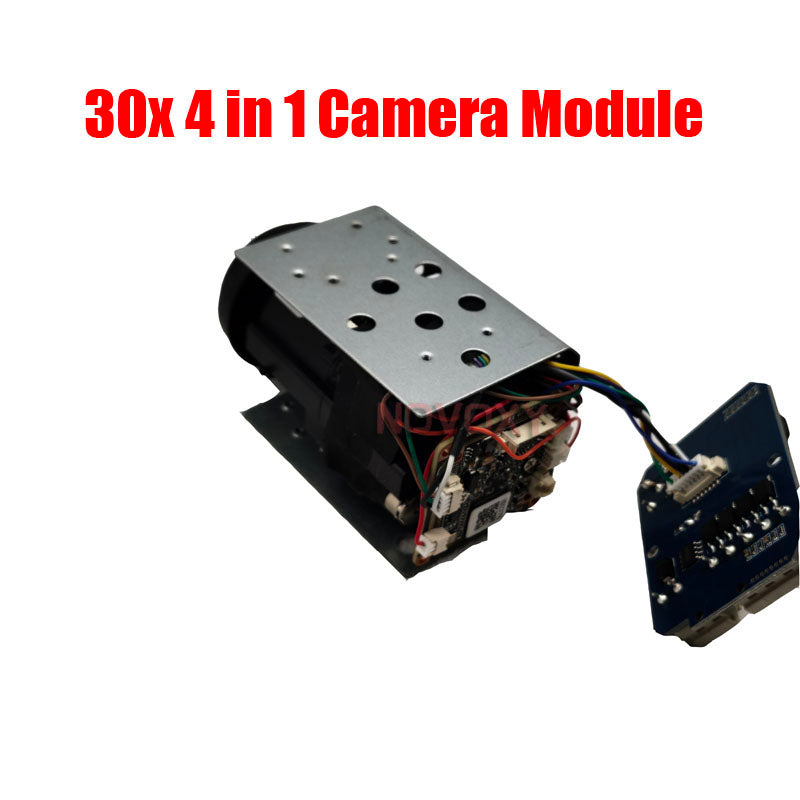

1200TVL CVBS 2MP AHD CVI TVI 4 In 1 30x Optical Zoom Block Camera Module
Note:
1.CVBS signal output reslution is 960H , can directly connect with display
2.AHD/CVI/TVI Siganl output reslution is 1080P , Must be work with 1080P 4IN1 DVR. Can not directly connect with display
3. We can help you switch to the signal mode you want, but if you click restore Factory Defaults in the menu, it will default to AHD signal, PAL system.
Specifications:
|
Model |
SK-ART7102CS2L |
|
Video Format |
AHD/TVI/CVI/CVBS Output |
|
Image Sensor |
SONY IMX 307 CMOS Sensor |
|
Effective Pixel |
1920(H)x1080(V) |
|
Horizontal Resolution |
1080P |
|
Signal System |
PAL/NTSC |
|
Frame Rate |
25/30fps@2MP (1920x1080) |
|
Minimum Illumination |
Color: 0.05Lux@F1.6, B/W: 0.005Lux@F1.6 |
|
Lens |
20X f=4.7–94mm / F1.6 Motorized Zoom Lens |
|
Optical Zoom |
30x |
|
Digital Zoom |
N/A |
|
Angle of View |
58.9~2.1 Degrees |
|
Focus |
Auto/Manual/Auto Zoom |
|
Lens Initialization |
Built in |
|
Day/Night |
IR CUT, Auto/Color/B&W/Ext |
|
Auto Gain Control |
Yes |
|
Sens-up |
Yes (Auto/Off) |
|
White Balance |
AWB/ATW/AWC/Indoor/Outdoor/Manual |
|
Iris Control |
Auto |
|
Defog |
Yes |
|
Backlight Compensation |
BLC/HSBLC/Off |
|
Exposure Mode |
Auto |
|
Wide Dynamic Range |
D-WDR |
|
Sharpness Adjustment |
Yes |
|
Image Control |
Mirror/Flip |
|
Noise Reduction |
2D/3D-DNR |
|
Digital Effect |
Freeze/Mirror/Negative Image |
|
S/N Ratio |
>/=50dB (Enhanced) |
|
Electronic Shutter |
PAL: 1/25s~1/10,000s, |
|
Video Output |
1.0Vp-p 75 Ω |
|
OSD Language |
English, Simplified Chinese, Traditional |
|
Control Protocol |
Pelco-D, 2400/4800/9600bps |
|
RS485 Interface |
Yes |
|
Power Supply |
DC 12V, Max. 6W |
|
Storage Temperature & Humidity |
-20 ~ +70C degrees (20~95% RH) |
|
Working Temperature & Humidity |
-10 ~ +60C degrees (20~80% RH) |
|

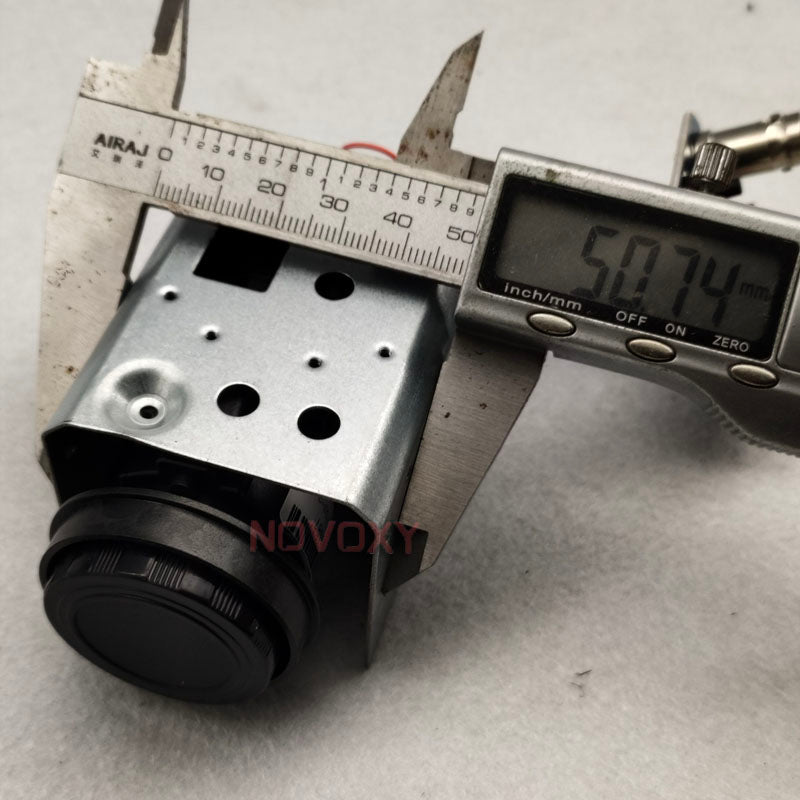

Dimension |

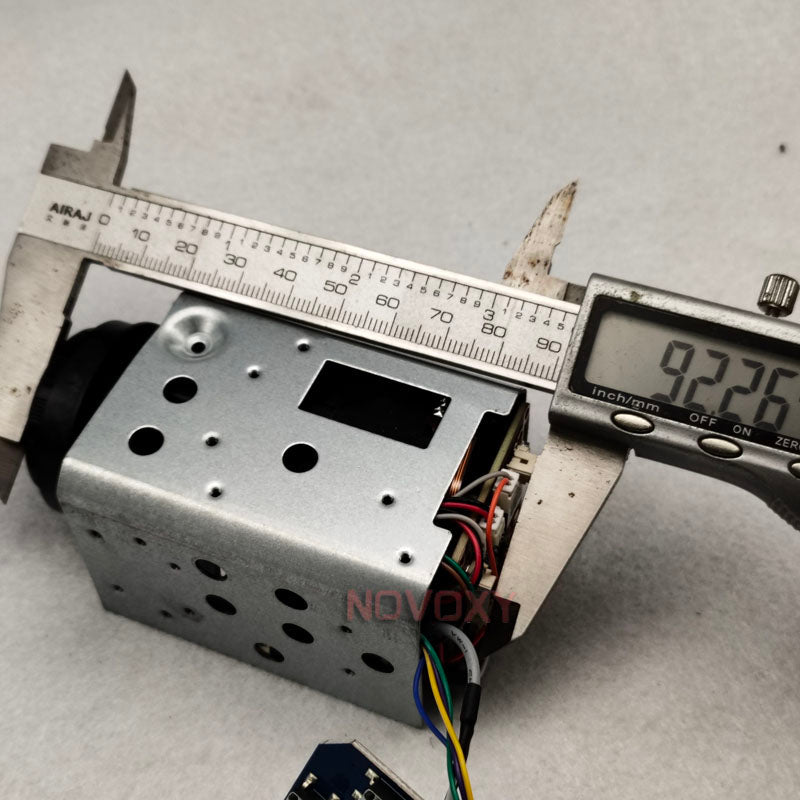

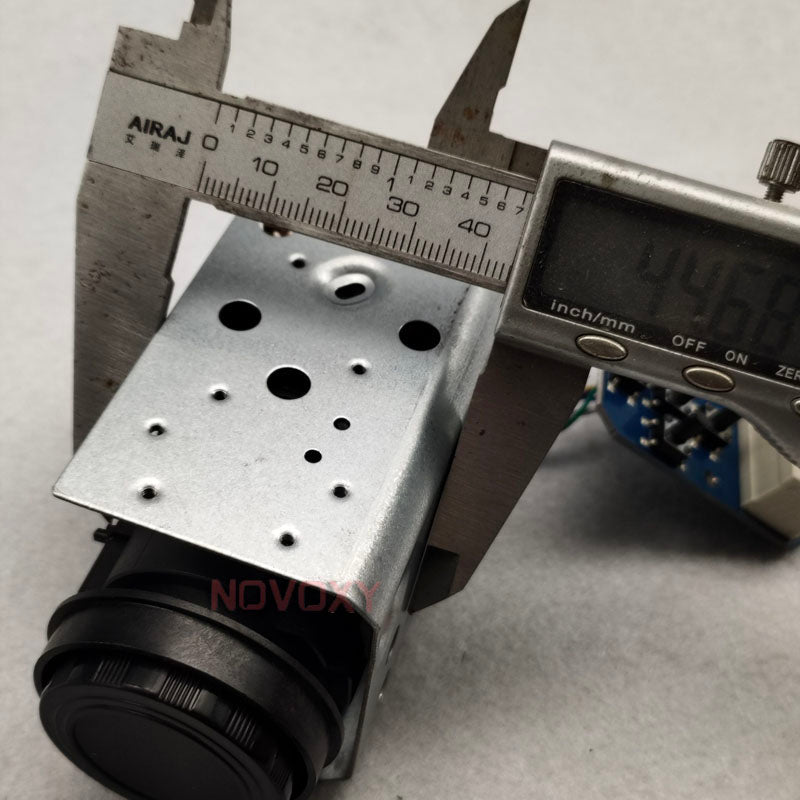

120(L)x48(W)x60(H)mm, Mount Plate 5(H)mm |
|
Net Weight |
310g |
How to switch the different signal:

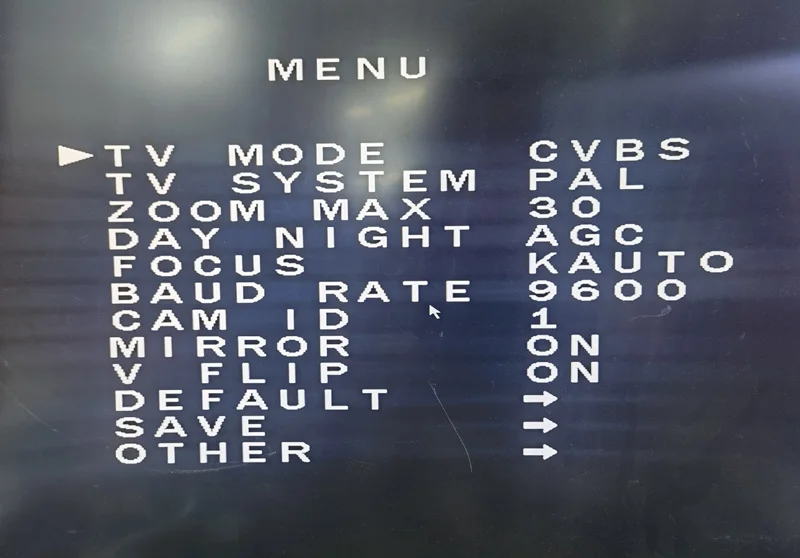

Press "MENU" button to enter into menu and select "TV Model" as shown below,press "NEAR" or " FAR" button to switch different signal ouput.
Remeber click "SAVE" after you change any setting( select "save" and press "near" botton to save setting)
TV system switch method is the same as signal mode switch method
