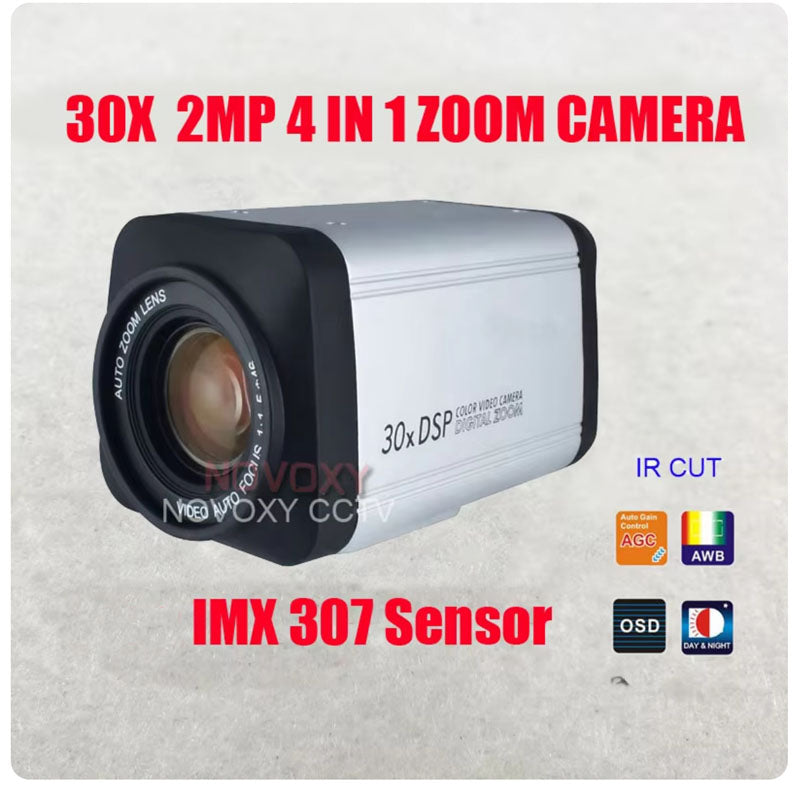

NOVOXY SK-ART7100CS IMX 307 30x 20X Optical Zoom Camera 1/3 Inch CMOS 1200TVL 1080P 2MP Vari-focal Lens CCTV Security Camera
NOVOXY SK-ART7100CS IMX 307 30x 20X Optical Zoom Camera 1/3 Inch CMOS 1200TVL 1080P 2MP Vari-focal Lens CCTV Security Camera
Couldn't load pickup availability
NOVOXY IMX307 CMOS 1080P 20X 30x Optical 4.7-94mm Vari-focal Lens CCTV Zoom Camera 1200TVL Security Integrated Camera
Note:
To prevent buyers from selecting the wrong information
output and causing the image to not be displayed, the
default factory signal output is CVBS signal,. If you need to specify other signal outputs, please leave a message for us.
CVBS signal can directly to connect with diplay or monitor, Other signal can not direct to connect with display or mintor, Unless your monitor support AHD/TVI/CVI signal input
Please communicate with us promptly if no images are available, and do not easily dispute returns due to the absence of images!!!!. Because the vast majority of buyers choose the wrong signal
Features:
1. Adopt 1/3" CMOS image sensor
2. WDR, Digital Noise Reduction (DNR), Highlight Compensation (HLC)
3. Digital high speed focus, continuous track
4. Super low illumination and power consumption.
Specifications:
|
Model No . |
SK-ART7100CS2 |
|
|
Signal model |
PAL/NTSC |
|
|
Image sensor |
1/3" IMX307 CMOS Sensor |
|
|
Effective pixel |
AHD CVI TVI MODE: 1920(H) x1080(V) Analog: 960x576 |
|
|
Horizontal resolution |
1200TVL |
|
|
Minimum illumination |
Color to B/W, Color: 0.1Lux, B/W: 0.01Lux |
|
|
WDR |
Yes |
|
|
Sync system |
Internal sync |
|
|
Focus length |
4.7~94mm |
|
|
Optical focus |
20X Display 30x zoom |
|
|
Focus |
Auto/manual, take high-performance DSP to realize complete digit and ultra-high speed focus function |
|
|
Gain Control |
Auto/Manual |
|
|
White balance |
Auto |
|
|
Iris |
Auto/Manual |
|
|
S/N radio |
>60dB(Enhanced) |
|
|
Electronic shutter |
1/50(1/60)s~1/10000 s |
|
|
Video output |
1.0Vp-p 75 Ω |
|
|
Power cut memory restore |
Yes |
|
|
Language |
Chinese/English |
|
|
Screen menu |
AWB , Digital noise reduction Light suppression,Mirror |
|
|
Control |
Pelco D 2400/4800/9600 |
|
|
Gama modulus |
0.45 |
|
|
Interface mode |
Nine -pin connector |
|
|
Power supply |
DC12V,90~120mA |
|
|
Work temperature |
-20°C~+70°C |
|
|
Dimension |
(W)60 x (H)58 x (L)115mm |
|
|
Weight |
400g |
|
