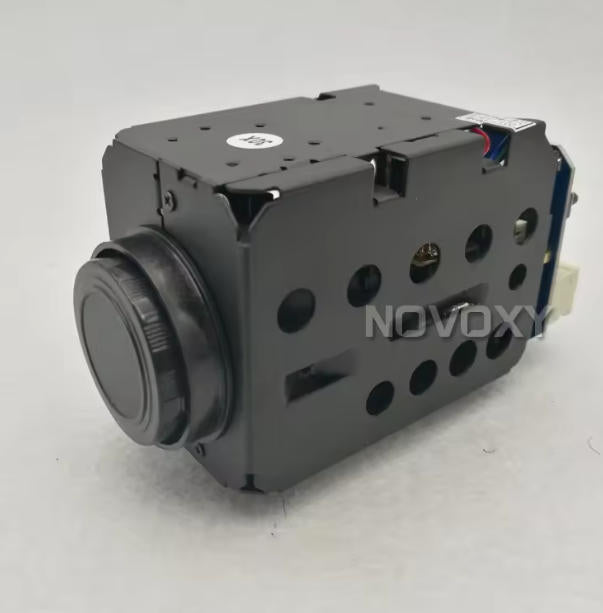

NOVOXY SK-ART7102C2 IMX307 2MP 1080P AHD TVI CVI CVBS 4 in 1 Zoom Camera 30x 20X Optical 5-90mm Varifocal Lens IR CUT HLC
NOVOXY SK-ART7102C2 IMX307 2MP 1080P AHD TVI CVI CVBS 4 in 1 Zoom Camera 30x 20X Optical 5-90mm Varifocal Lens IR CUT HLC
Couldn't load pickup availability
Free shipping 2MP AHD 30x Optical Auto Focus Digital CCTV Security PTZ Speed Dome Camera Zoom Module Lens
Note:
1. The camera is AHD TVI CVI CVBS 4 IN 1 . You choose the correct signal output according to your HD DVR. Otherwise no image will be displayed . The CVBS signal output can work with any DVR
2, The CVBS signal output can work with any DVR , If you do know what 's DVR in you hand, you 'd better to choose CVBS signal output.
3. You can switch different signal output and PAL/NTSC system when the image was displayed
Parameter:
|
|
|
|
|
Signal model |
PAL/NTSC |
|
|
Image sensor |
1/3" IMX307 CMOS |
|
|
Effective pixel |
1920(H) x 1080(V)(AHD/CVI/TVI) ; 960X576(CVBS) |
|
|
Horizontal resolution |
AHD/TVI/CVI: 1080P. CVBS :960H |
|
|
Minimum illumination |
Color: 0.01Lux, B/W: 0.001Lux |
|
|
Sync system |
Internal sync |
|
|
Focus length |
4.7~94.0mm |
|
|
Optical focus |
20X Display 30x zoome |
|
|
Focus |
Auto/manual/AUTO ZOOM |
|
|
Gain Control |
Auto/Manual |
|
|
White balance |
Auto |
|
|
Iris |
Auto/Manual |
|
|
S/N radio |
>50dB(Enhanced) |
|
|
Electronic shutter |
PAL:1/25s~1/10000 s NTSC:1/30~1/100000s |
|
|
Video output |
1.0Vp-p 75 Ω |
|
|
Language |
Chinese/English |
|
|
Screen menu |
AWB , Digital noise reduction , Light suppression,Mirror |
|
|
Control |
Pelco D 2400/4800/9600 |
|
|
Gama modulus |
0.45 |
|
|
Interface mode |
Nine -pin connector |
|
|
Power supply |
DC12V,90~120mA |
|
|
Work temperature |
-20°C~+50°C |
|
|
Dimension |
W60mmXH58mmXL115mm |
|
|
Weight |
400g |
|
