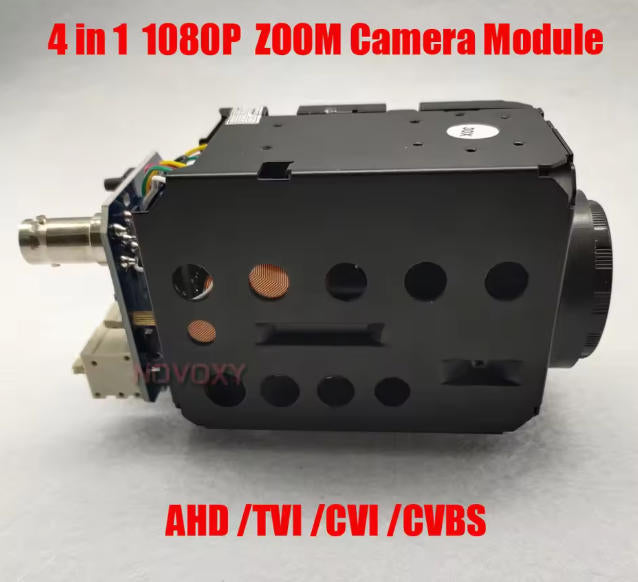

NOVOXY SK-ART7102C2 IMX307 2MP 1080P AHD TVI CVI CVBS 4 in 1 Zoom Camera 30x 20X Optical 5-90mm Varifocal Lens IR CUT HLC
NOVOXY SK-ART7102C2 IMX307 2MP 1080P AHD TVI CVI CVBS 4 in 1 Zoom Camera 30x 20X Optical 5-90mm Varifocal Lens IR CUT HLC
Couldn't load pickup availability
Free shipping 2MP AHD 30x Optical Auto Focus Digital CCTV Security PTZ Speed Dome Camera Zoom Module Lens
Note:
1. The camera is AHD TVI CVI CVBS 4 IN 1 . You choose the correct signal output according to your HD DVR. Otherwise no image will be displayed . The CVBS signal output can work with any DVR
2, The CVBS signal output can work with any DVR , If you do know what 's DVR in you hand, you 'd better to choose CVBS signal output.
3. You can switch different signal output and PAL/NTSC system when the image was displayed
Parameter:
|
|
|
|
|
Signal model |
PAL/NTSC |
|
|
Image sensor |
1/3" IMX307 CMOS |
|
|
Effective pixel |
1920(H) x 1080(V)(AHD/CVI/TVI) ; 960X576(CVBS) |
|
|
Horizontal resolution |
AHD/TVI/CVI: 1080P. CVBS :960H |
|
|
Minimum illumination |
Color: 0.01Lux, B/W: 0.001Lux |
|
|
Sync system |
Internal sync |
|
|
Focus length |
4.7~94.0mm |
|
|
Optical focus |
20X Display 30x zoome |
|
|
Focus |
Auto/manual/AUTO ZOOM |
|
|
Gain Control |
Auto/Manual |
|
|
White balance |
Auto |
|
|
Iris |
Auto/Manual |
|
|
S/N radio |
>50dB(Enhanced) |
|
|
Electronic shutter |
PAL:1/25s~1/10000 s NTSC:1/30~1/100000s |
|
|
Video output |
1.0Vp-p 75 Ω |
|
|
Language |
Chinese/English |
|
|
Screen menu |
AWB , Digital noise reduction , Light suppression,Mirror |
|
|
Control |
Pelco D 2400/4800/9600 |
|
|
Gama modulus |
0.45 |
|
|
Interface mode |
Nine -pin connector |
|
|
Power supply |
DC12V,90~120mA |
|
|
Work temperature |
-20°C~+50°C |
|
|
Dimension |
W60mmXH58mmXL115mm |
|
|
Weight |
400g |
|
How to switch the different signal:
Press "MENU" button to enter into menu and select "TV Model" as shown below,press "NEAR" or " FAR" button to switch different signal ouput.
Remeber click "SAVE" after you change any setting( select "save" and press "near" botton to save setting)
TV system switch method is the same as signal mode switch method
