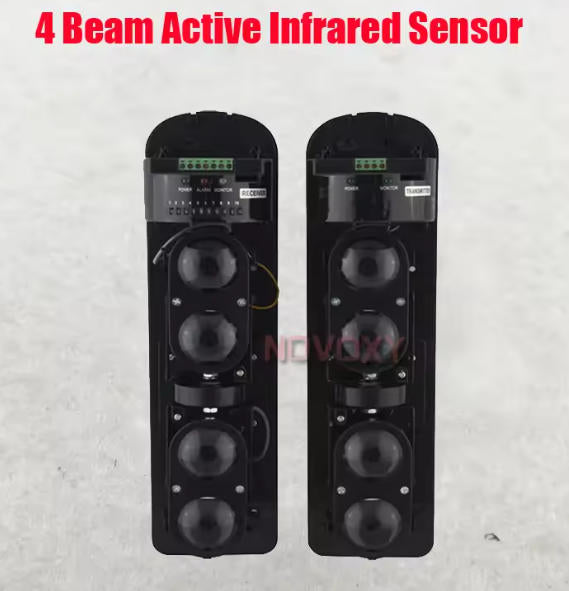

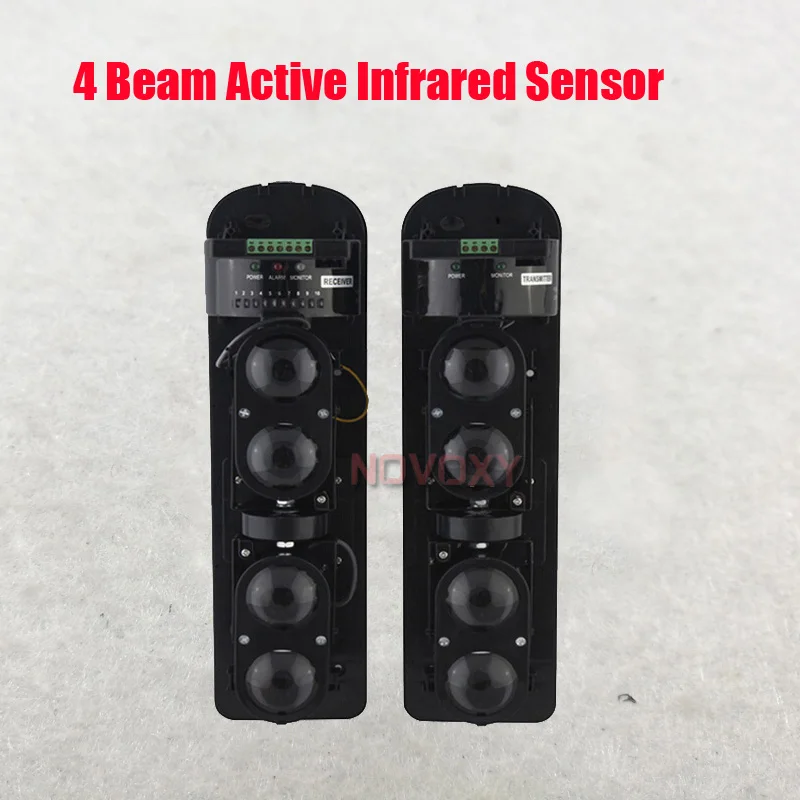

Photoelectric 4 Beam Perimeter Fence Active Infrared IR Sensor Barrier Detector Window Outdoor Intrusion Alarm

Photoelectric 4 Beam Perimeter Fence Active Infrared IR Sensor Barrier Detector Window Outdoor Intrusion Alarm

$86.63 USD
$86.63 USD
Sale Sold out

New 50M 100m 150m 200m 4 beam alarm Active Infrared Beam Sensor ABS Materials Authentic Electron infrared detector security beams free shipping

Note:

 Default model is ABH-150(L)  150M
 ABL-50L  ABH-100L  ABH-200L  is optional.    you can leave you message for model you need



Description:

1.Ten signal design, horizontal/vertical optical angle adjustment is convenient, easy to calibrate

2.Artificial Intelligence recognition technology,digital conversion and superior signal filtering

3.With high levels of anti-RFI/EMI capability

4.Unique design of the digital filter circuit

5.High-power transmitter,sensitivity surplus degree up to 90%

6.Anti-lightning circuit design

7.Adjustable of beam interdiction period,to make it more flexible and adaptable

8.Professional anti-jamming optical housing

9.High-power infrared receiver tube,low-power process technology

Paramter:

◆Outdoor warning distance 50m 100m 150m 200m 250m
◆Indoor warning distance 150m 300m 450m 600m 750M
◆Induction speed 35～700ms

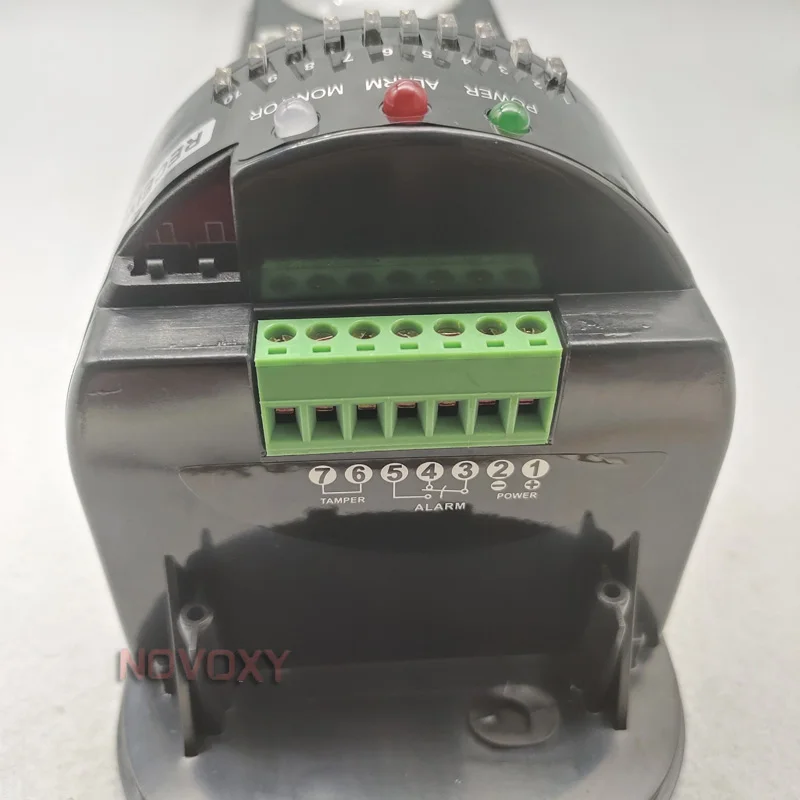

◆Alarm output-conventional normally closed and normally open (NC&NO) contact capacity AV/DC 30V/0.5A
◆Working voltage: DC 13.8～24V; AC 11～18V
◆Anti-dismantling output Normally closed (NC) contact capacity AV/DC 24V/0.5mA
◆Horizontal angle adjustment 180°(±90°)
◆Vertical angle adjustment ±10°
◆Shell material PC
